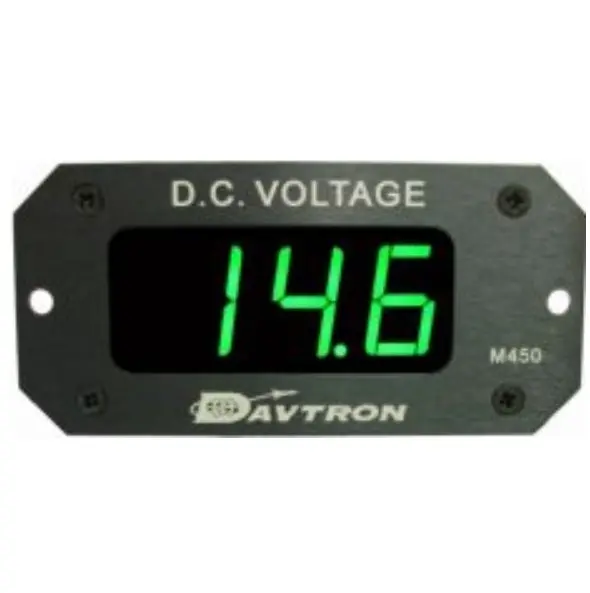

Davtron Model 450A-Green Voltmeter Green LED With Remote Sensing

Davtron Model 450A-Green Voltmeter Green LED With Remote Sensing

https://www.roctexo.com/web/image/product.template/85172/image_1920?unique=0256e72

Part Number(s): 10-04556, M450A-GRN

194.56 € 194.56 EUR 194.56 € Tax Excluded

2,097.80 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-10-04556

DescriptionPN
MODEL 450A-GRN VOLTMETER GREEN LED WITH REMOTE SENSING10-04556

Overview

Davtron M450 Features:

  • Minimum panel space
  • Lightweight
  • Automatic dimming
  • LED display
  • Operates from 14 to 28 volts
  • Low Voltage Alarm
  • Engraved Faceplate


Davtron FAA PMA # PQ1062NM

Installation

  • Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
  • FAA/PMA Approval
  • Beech 35, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, 35-33, 35-33A, with STC SA4381WP or SA4193 installed


Specifications

  • Range: 8 volts to 32 volts
  • Input current: 150 M.A.
  • Resolution: .1 volt
  • Weight: 3 oz.
  • Complete w/cable & connector
  • Operating temp: -20°C to +60°C
  • Accuracy: ±1% of full scale
  • Warranty: one year
  • Unit default alarm set to flash 11v or below
  • R3 & R4 located on back board
  • Alarm off/1.5 ohm resistor on R3
  • Alarm 20v or less/1.5 ohm resistor
