Aerospace Logic Fuel Level Resistive Float Two Tank FL202

Image for illustration only. It may show a product series rather than the exact product offered.

Aerospace Logic Fuel Level Resistive Float Two Tank FL202

https://www.roctexo.com/web/image/product.template/73727/image_1920?unique=b0e51d3
Part numbers : RX1-10-04432 , FL202 , ASS-10-04432 , 10-04432
Unit of Measure: EA

779.06 EUR / EA 779.06 EUR 779.06 € excl. VAT

779.06 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-10-12
Order before 17:00 CET Today
Up to 10 EA ready to ship on Thursday 2026-10-15
Order before 17:00 CET Today
6 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

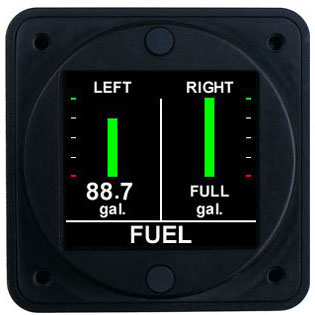

The Aerospace Logic FL202 is a two-tank fuel level instrument designed for use with resistive float-type fuel senders. It provides graphical fuel-level indication for each tank together with selectable digital fuel quantity readouts.

  • Manufacturer part number: FL202
  • Two-tank fuel level indication
  • Resistive sender input: 0.25 to 300 Ω
  • User-selectable display units: US gallons or litres
  • Published fuel quantity range: 0 to 120 US gallons, defined by sender and tank size
  • Sunlight-readable LCD with internal and external intensity control
  • DB-25 interface connector
  • 6 to 36 VDC input supply
  • Annunciator output: 100 mA sink with reverse-EMF protection
  • Approximate instrument dimensions: 62 × 62 × 24 mm

The FL202 supports graphical fuel-level display at power-up, selectable tank quantity displays and programmable colour indication. Sender orientation may be configured as proportional or inversely proportional to fuel quantity.

Installation and aircraft approval eligibility must be assessed against the applicable approved data and the manufacturer’s instructions for the specific aircraft.

Manufacturer documentation: FL20X Product Manual and FL2X2 Calibration Record.
