Aerospace Logic EGT Kit 6C With TIT 2-1/2 Clamp Type Probes ET206TP3

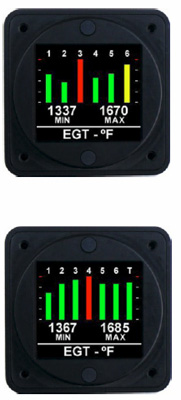

The Aerospace Logic ET206TP3 is a six-cylinder exhaust gas temperature (EGT) and turbine inlet temperature (TIT) instrument kit. It provides a full-colour, simultaneous real-time display of all six cylinder temperatures and TIT, supporting clear engine-temperature monitoring from a single panel instrument.

This ET206TP3 configuration is supplied with six 2½ in (approx. 64 mm) clamp-type EGT probes, one bayonet Type-K ungrounded TIT thermocouple probe, connectors and installation hardware.

• Six-cylinder EGT and TIT indication
• Real-time, graphic display of all cylinder temperatures and TIT
• Single-cylinder monitoring while retaining graphical indication of all cylinders
• Rich-of-peak (ROP) and lean-of-peak (LOP) leaning functions
• Graphic temperature trend display
• Sunlight-readable LCD with selectable °C or °F display units
• Designed for ungrounded Type-K thermocouple inputs

The manufacturer lists TSO C43c and SAE AS8005 Class IIa temperature-accuracy compliance for the EGT and TIT functions. Installation approval, aircraft eligibility and applicable regulatory requirements must be confirmed against the current manufacturer documentation and the aircraft’s approved data.

Part number: ET206TP3

Documentation: Manufacturer product manual (Rev. 5) and clamp EGT probe installation instructions are available from Aerospace Logic.
