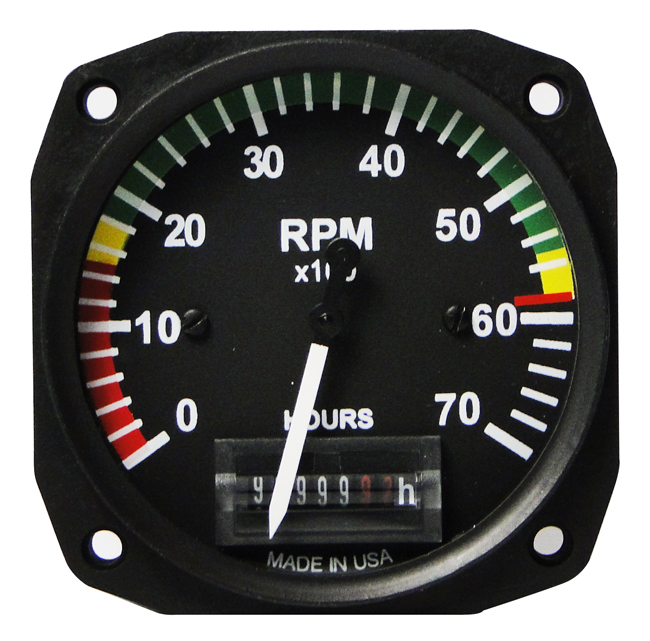

UMA 3-1/8 Electric Tachometer 0-7000 RPM With MarkinGS Rotax 912 914

Image for illustration only. It may show a product series rather than the exact product offered.

UMA 3-1/8 Electric Tachometer 0-7000 RPM With MarkinGS Rotax 912 914

Factory-direct distributor Roctexo Aerospace is a factory-direct distributor for UMA, the manufacturer of this product. We welcome requests for any quantity of this product, as well as for other products manufactured by UMA.
https://www.roctexo.com/web/image/product.template/106617/image_1920?unique=dc14d6a
Part numbers : RX1-10-04223 , 19-819-211 , 10-04223
Unit of Measure: EA

361.29 EUR / EA 361.29 EUR 361.29 € excl. VAT

361.29 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The UMA Instruments electric tachometer, manufacturer part number 19-819-211, is a 3-1/8 in (approximately 79 mm) panel instrument configured for Rotax 912/914 engines. It provides a 0–7,000 RPM indication range with a 1 pulse-per-revolution (1 PPR) configuration and pig-tail wires.

The coloured dial markings provide a clear RPM reference for the specified Rotax application. An integrated hourmeter function supports engine operating-time recording.

  • Manufacturer: UMA Instruments
  • Manufacturer part number: 19-819-211
  • Instrument diameter: 3-1/8 in (approximately 79 mm)
  • Indication range: 0–7,000 RPM
  • Configuration: 1 PPR
  • Dial markings: red arc 0–1,500 RPM; yellow arcs 1,500–1,800 and 5,500–5,800 RPM; green arc 1,800–5,500 RPM; red reference at 5,800 RPM
  • Manufacturer-listed input options: lighting coil, ignition coil and Rotax tachometer output
  • Hourmeter function included

Refer to the UMA Instruments electronic tachometer information and applicable installation instructions before installation.

Contact Us

Terms and Conditions

Share

Overview

Designed specifically for the popular Rotax 912/914 engines, the 3-1/8" tach, model number 19-819-211, has it all. A rugged air-core movement, colored dial markings, high accuracy, an hour meter drive and optional self contained EL lighting. With an accuracy of ±25 RPM, and a 270 deg sweep. Working on either 12 or 24 volts, this tach makes flying behind a Rotax an easy task. 0-7,000 RPM

Note: Includes hourmeter function.
