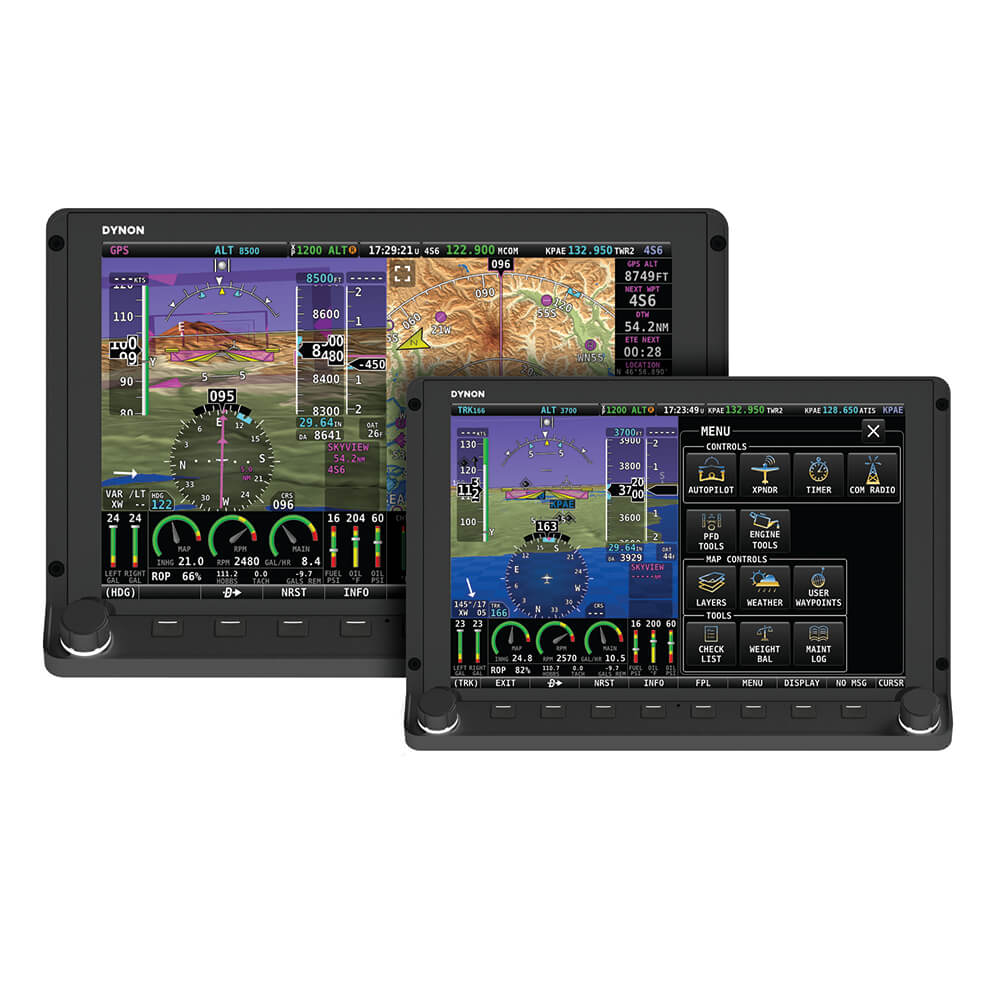

Dynon Skyview Dual ADAHRS Package

The Dynon SkyView Dual ADAHRS Package provides a primary and secondary Air Data/Attitude/Heading Reference System (ADAHRS) arrangement for Dynon SkyView installations. It combines the SV-ADAHRS-200 primary module with the SV-ADAHRS-201 secondary/backup module to support redundant flight-data sources within the SkyView system.

Dynon ADAHRS modules use MEMS sensor technology to process inertial, magnetic and Pitot/static air-data inputs. When integrated with a compatible SkyView system, this data supports displayed flight information including attitude, heading, airspeed, altitude, vertical speed, turn/slip information and other applicable SkyView functions.

• Dynon part numbers: 101293-000 / 001
• Includes primary SV-ADAHRS-200 and secondary SV-ADAHRS-201 ADAHRS modules
• Primary and secondary modules are functionally equivalent; a SV-ADAHRS-200 is required for the secondary module to provide redundant functionality
• SkyView Network connection via 9-pin D-sub connector
• Pneumatic connections for Pitot, static and angle-of-attack inputs
• Integrated magnetic sensor (magnetometer)

Correct mounting orientation, location selection, pneumatic connection and calibration are essential to system performance. Refer to the applicable Dynon SkyView System Installation Guide and aircraft installation data before installation.
