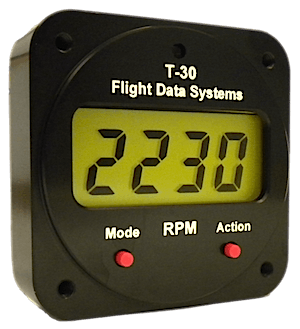

Flight Data Sys Electric Tachometer T-30

Image for illustration only. It may show a product series rather than the exact product offered.

Flight Data Sys Electric Tachometer T-30

https://www.roctexo.com/web/image/product.template/61515/image_1920?unique=888ee45
Part numbers : RX1-10-03898 , T-30 FLIGHT DATA , 10-03898
Unit of Measure: EA

170.32 EUR / EA 170.32 EUR 170.32 € excl. VAT

170.32 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-10-12
Order before 17:00 CET Today
Up to 7 EA ready to ship on Thursday 2026-10-15
Order before 17:00 CET Today
8 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Flight Data Systems T-30 combines a tachometer, engine hour meter and automatic flight timer in a compact panel-mounted instrument for experimental aircraft.

The T-30 displays RPM or %RPM, monitors left and right ignition systems, and provides an ignition-system failure warning. It connects to P-leads and/or electronic-ignition tachometer signals; the manufacturer states that no firewall penetration is required.

  • Fits a 57 mm (2¼ in) instrument hole
  • Compatible with 12–28 V electrical systems
  • Large, easy-to-read display with soft orange backlight and automatic brightness adjustment
  • Milled aluminium enclosure
  • Supplied with pre-wired harness
  • Engine hour meter records tach time or actual time and can be set to a chosen starting-hour reading

Approval status: Not EASA/FAA approved. Intended for experimental aircraft only.

Manufacturer part number: T-30 FLIGHT DATA

Installation and operating information is available from Flight Data Systems support.

Contact Us

Terms and Conditions

Share

Overview

Note: Not FAA Approved. Intended for use in experimental aircraft only.

    TACHOMETER:
  • Monitors Both Left and Right Ignition Systems
  • Warns when an Ignition System has Failed
  • Connects to P-Leads and/or Electronic Ignition
  • Works with Radial Engines too
  • Displays RPM or %RPM
  • No Firewall Penetration Required
    • ENGINE HOUR METER:
  • Saves Engine Hours in "Tach Time" or Actual Time
  • Can Be Set to Any Starting Hour Reading
    • FLIGHT TIMER:
  • Automatically Records Flight Time

Known to work with:
  • Slick Magnetos
  • Bendix Magnetos
  • M-14 Radial Engine Magnetos
  • Lightspeed Electronic Ignition
  • Emag/Pmag
  • Electro Air
  • Rotax Four Cycle Engines (912, etc...)
  • Jabiru (Hardware modification required, Please contact us before ordering to have your unit modified for a Jabiru it leaves our facility)
  • Suzuki 6 Cylinder used in Scaled P-51
  • Bosch Blue Coil and 009 Distributor

Features

  • Large and Easy to Read Digits
  • Extreme Operating Temperature Display
  • Soft Orange Backlight with Automatic Brightness
  • 2-1/4" Panel Mounted
  • Weighs 3.0oz
  • Milled Aluminum Enclosure
  • Includes Pre-Wired Connector
  • 12-28 Volt Compatible
