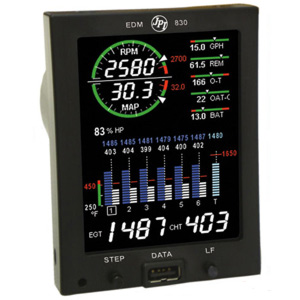

JPI EDM 830 6C Engine Monitor System With FF 231 EDM-830-6C 231

The J.P. Instruments EDM-830-6C 231 is an EDM 830 engine monitoring system configured for six-cylinder monitoring and supplied with fuel-flow functionality. It combines a compact full-colour graphical display with configurable engine-data presentation to support clear in-flight monitoring and post-flight engine-data review.

The EDM 830 series provides monitoring functions for EGT and CHT, together with fuel-flow information, RPM, manifold pressure, oil temperature, oil pressure, outside-air temperature, voltage and calculated percentage power where the required inputs are installed. Fuel-flow functions include fuel used, fuel remaining, flow rate, endurance and GPS destination information when connected and configured accordingly. ([jpinstruments.com](https://www.jpinstruments.com/shop/edm-8301/?utm_source=openai))

• Manufacturer: J.P. Instruments
• Manufacturer part number: EDM-830-6C 231
• Six-cylinder configuration
• Fuel-flow functionality
• Full-colour LCD display with portrait or landscape orientation
• USB interface for supported software updates and data download

The EDM 830 is designed for panel installation in a standard 3-1/8 in instrument opening (approximately 79 mm). Installation, configuration and any operational approval must be determined against the applicable J.P. Instruments instructions, aircraft documentation and the requirements of the relevant aviation authority. No EASA approval is implied by this product description. ([jpinstruments.com](https://www.jpinstruments.com/wp-content/uploads/2012/06/INST-103-RevE-5-17-09.pdf?utm_source=openai))

Manufacturer documentation available for the EDM 830 series includes the Pilot’s Guide, Instrument Installation Manual, Fuel Flow Installation Manual, Flight Manual Supplement, STC/AML material and TSO certificate documentation. ([jpinstruments.com](https://www.jpinstruments.com/technical-support/manuals/?utm_source=openai))
