JPI EDM 730 4C Engine Monitor System With FF 231 With 1 CHT Adapter Probe EDM-730-4C 231

JPI EDM 730 4C Engine Monitor System With FF 231 With 1 CHT Adapter Probe EDM-730-4C 231

https://www.roctexo.com/web/image/product.template/8869/image_1920?unique=9751a36
Part numbers : RX1-10-03718 , EDM-730-4C 231 , 10-03718
Unit of Measure: EA

2214.64 EUR / EA 2214.64 EUR 2,214.64 € excl. VAT

2214.64 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Thursday 2026-08-13
Order before 16:00 CET on Tuesday 2026-08-11
1 EA available on request, fees apply
Special order from vendor stock.

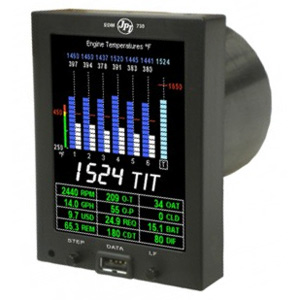

J.P. Instruments EDM-730-4C 231 is an EDM 730 advisory engine-monitoring system configuration for four-cylinder piston engines. This configuration is supplied with a Model 231 fuel-flow transducer and one CHT adapter probe.

The EDM 730 combines a colour LCD display with user-programmable engine parameters and warning annunciation. Its offset rear processor supports vertical or horizontal panel installation, helping accommodate different instrument-panel layouts. JPI specifies data recording with USB download capability for review of recorded engine data.

  • Manufacturer part number: EDM-730-4C 231
  • EDM-730-4C monitor configuration for four-cylinder engines
  • Includes Model 231 fuel-flow transducer
  • Includes one CHT adapter probe
  • Model 231 transducer: 3 to 90 GPH range; 1/4 in female NPT fuel ports
  • Colour LCD display with programmable limits and warning annunciation
  • Vertical or horizontal panel mounting orientation
  • USB data-download capability

Installation, configuration and continued operation must be carried out in accordance with the applicable J.P. Instruments documentation and the aircraft’s approved data. Confirm aircraft eligibility, required installation hardware and any applicable approval basis before installation.

Manufacturer documentation: Instrument Installation Manual | Fuel Flow Installation Manual | Pilot’s Guide for EDM 730/830
