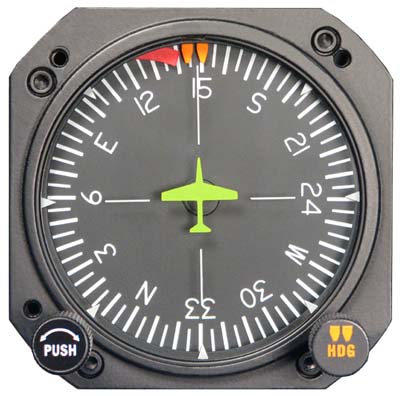

RC Allen 15Bk-16 Directional Gyro With Autopilot Output TSO

RC Allen 15Bk-16 Directional Gyro With Autopilot Output TSO

https://www.roctexo.com/web/image/product.template/69787/image_1920?unique=4edd08f
Part numbers : RX1-10-02533 , RCA15BK-16 , 10-02533
Unit of Measure: EA

2210.49 EUR / EA 2210.49 EUR 2,210.49 € excl. VAT

2210.49 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The RC Allen RCA15BK-16 is an unlit directional gyro with a push-to-set heading bug and specified 400 Hz, 5K autopilot-output configuration. It features a brushless AC motor and a power-failure flag for clear indication of instrument power status.

Manufacturer part number: RCA15BK-16

  • 28 V configuration
  • 400 Hz, 5K autopilot output
  • Push-to-set heading bug
  • Brushless AC motor
  • Power-failure flag
  • Stated to meet or exceed FAA TSO-C5c and Aeronautical Standard AS397 requirements
  • Main mating connector: MS3116E8-4S
  • Autopilot mating connector reference: Amphenol 126-223 or Winchester M5SH9C
  • Approximate dimensions: 19 × 9 × 9 cm
  • Weight: approximately 1.6 kg

Please verify the required electrical configuration, connector arrangement and autopilot interface requirements against the aircraft documentation before installation.
