Dynon AOA Pitot Heated Large Tube No Bracket

Dynon AOA Pitot Heated Large Tube No Bracket

https://www.roctexo.com/web/image/product.template/113941/image_1920?unique=9ac4f08
Part numbers : RX1-10-02158 , 100667-000 , 10-02158
Unit of Measure: EA

583.47 EUR / EA 583.47 EUR 583.47 € excl. VAT

583.47 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 4 EA ready to ship on Thursday 2026-08-27
Order before 16:00 CET Tomorrow
Up to 7 EA ready to ship on Monday 2026-08-31
Order before 16:00 CET Tomorrow
9 EA available on request, fees apply
Special order from vendor stock.

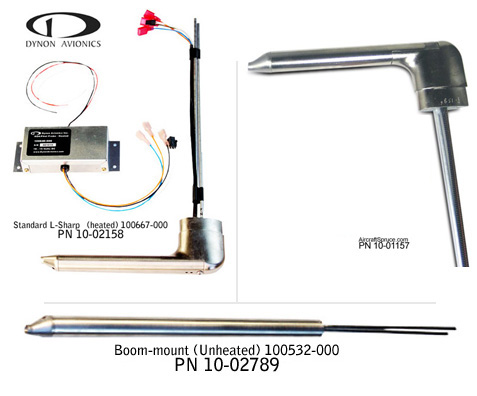

The Dynon Avionics Heated AOA/Pitot Probe, manufacturer part number 100667-000, combines pitot-pressure sensing and angle-of-attack (AOA) sensing in one L-shaped, large-tube probe assembly. It is intended for installations requiring separate pneumatic connections for pitot and AOA pressure signals.

The heated probe incorporates a nichrome heating element and is used with a separate Dynon pitot-heater controller. The controller monitors probe temperature, regulates heating power, and provides an output for an optional cockpit warning indication.

  • Manufacturer part number: 100667-000
  • Heated AOA/Pitot probe with separate pitot and AOA pressure ports
  • L-shaped / large-tube configuration
  • Mounting bracket not included
  • Designed for an AN5812-type pitot mast; mast not included
  • AOA functionality is designed for Dynon Avionics and Advanced Flight Systems equipment; refer to the applicable system documentation before installation

For installation, pneumatic routing, electrical connections, calibration and maintenance information, consult the Dynon Heated and Unheated AOA/Pitot Probe Installation Guide.
