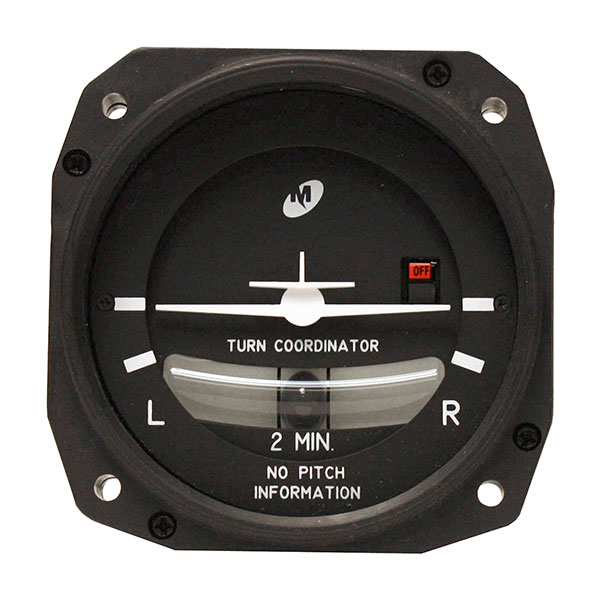

Mid-Continent Instruments and Avionics Turn Coordinator 12-32V 3P Black Brushless 1394T100-7B
Part Number(s): 10-02108, 1394T100-7B
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-10-02108
Overview
| 11–32 VDC, 3-pin, Black ball, Brushless - Low Wing Engineered for a long service life, the “B” model turn coordinator features a proven AC rotor powered by a solid-state inverter, creating less heat behind the panel. Utilizing a brushless rotor design, this instrument has top industry ratings of 4,800 hours MTBF. It is ideal for use in high performance aircraft and cold-climate applications. All 3-inch turn coordinators operate from 10–32 volts DC for convenience and reliability. Note: 8130-3 not included in box. Please request at time of order if required. |
Specifications
- Input Voltage Range VDC: 11 – 32
- Rotor Type: AC
- Power Consumption Nominal: 0.28 A
- Dimensions: 3 1/4" x 3 1/4" x 5"
- Maximum Weight: 1.4 lbs.
- Turn Indication: Standard 2–Minute Turn
- Operating Temperature: –30°C to + 50°C
- Operating Altitude: –1,000 ft. to 35,000 ft.
- Glass: HEA non-glare
- Mounting: 3 1/8" front or rear panel
- FAA TSO certified to C3b
