RC Allen 26Bk-6 Electric Att Gyro TSO

RC Allen 26Bk-6 Electric Att Gyro TSO

https://www.roctexo.com/web/image/product.template/69769/image_1920?unique=eae816f
Part numbers : RX1-10-01393 , RCA26BK-6 , 10-01393
Unit of Measure: EA

2178.78 EUR / EA 2178.78 EUR 2,178.78 € excl. VAT

2178.78 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

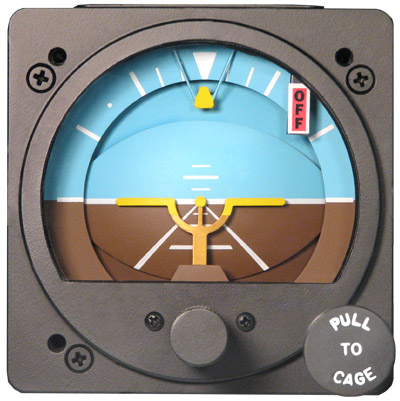

The RC Allen RCA26BK-6 is a 28 VDC electric attitude gyro from the RCA26BK series. It uses an electrically driven rotor to provide a pictorial indication of aircraft pitch and roll attitude.

  • Manufacturer part number: RCA26BK-6
  • 28 VDC electrical system
  • Standard presentation with fixed pointer and movable roll dial
  • Yellow aircraft symbol and pointer
  • Built-in inverter for conversion of aircraft DC power to the gyro’s required AC supply
  • Pull-cage knob and power-failure flag
  • Connector pin assignment: A—motor ground; B—spare; C—+28 VDC motor; D—spare

RC Allen manufacturer literature for the RCA26 series states that these instruments meet or exceed the requirements of TSO-C4c and Aeronautical Standard AS396B. Approval status and suitability for a specific aircraft installation should be verified against the applicable approved data and maintenance documentation.

Documentation: RCA26 AK/BK/EK User Manual
