Electronics International Ec-1 EGT CHT Single Channel Gauge 2-1/4 TSO

Image for illustration only. It may show a product series rather than the exact product offered.

Electronics International Ec-1 EGT CHT Single Channel Gauge 2-1/4 TSO

https://www.roctexo.com/web/image/product.template/13557/image_1920?unique=182fd28
Part numbers : RX1-10-01358 , EC-1 , 10-01358
Unit of Measure: EA

518.45 EUR / EA 518.45 EUR 518.45 € excl. VAT

518.45 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 8 EA ready to ship on Thursday 2026-10-22
Order before 16:00 CET Tomorrow
7 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

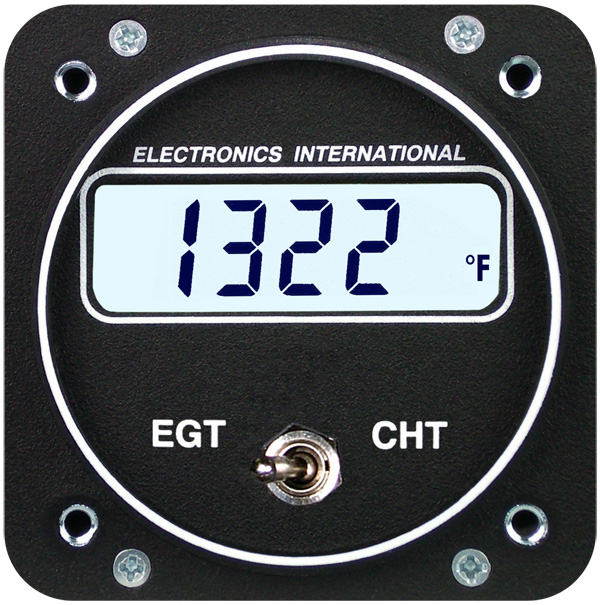

The Electronics International EC-1 is a compact digital engine-temperature instrument for monitoring one exhaust gas temperature (EGT) channel and one cylinder head temperature (CHT) channel. Its stable, one-degree digital display supports clear temperature trend monitoring, with a sunlight-viewable LCD and dimmable backlighting for night operation.

  • Manufacturer part number: EC-1
  • Single-channel EGT and single-channel CHT monitoring
  • 57 mm flush-mount instrument
  • Approximate instrument dimensions: 64 × 64 × 93 mm deep
  • Operating supply range: 7.5 to 35 V
  • Manufacturer-listed as TSO’d and STC’d
  • Manufacturer categorises the EC-1 as a non-primary replacement instrument

The EC-1 package is listed by Electronics International as including the EC-1 instrument, one P-110F fast-response EGT probe, one P-100 CHT probe, two 2.4 m thermocouple extension cables, overlap connectors, wire harness, installation/operating instructions and STC/AML documentation.

Installation and eligibility must be determined against the applicable aircraft documentation and approved data. EASA approval is not stated by the manufacturer.

Manufacturer documentation: EC-1 product information and EC Line operating and installation instructions.

Contact Us
Orders with purchased items below 100.00 € incur a small order fee of 10.00 €. Both amounts exclude VAT. Shipping, other fees and core deposits do not count towards the limit.

Terms and Conditions

Share

Overview

The line of Electronics International digital instruments offers precise readings at exceptional prices. All gauges are accurate to 1% and are FAA-approved under STC No.1626NM. Furnished complete with all probes and leads.

EC-1: Single Channel EGT/CHT Kit, 2 1/4" Mount, 2.5" Depth, 16 Oz. Kit, STCd, TSOd, PMAd, 1 Degree Resolution, Accurate within 1/2%, Viewable in direct sunlight.

Package Includes: Instrument, 2 ea. 6 Cable, 1 ea. EGT Probe, 1 ea. CHT Probe. (Screw-in P-100 CHT Probe, unless otherwise specified.)

E.I. products include all documentation and certifications

FAA Approval

  • STC'd, TSO'd, PMA'd
