  3. Electronics International FT60 Fuel Flow Transducer For < 350HP / Fuel Pump
Public Pricelist EUR
Electronics International FT60 Fuel Flow Transducer For < 350HP / Fuel Pump

Electronics International FT60 Fuel Flow Transducer For < 350HP / Fuel Pump

https://www.roctexo.com/web/image/product.template/126231/image_1920?unique=45d5fe1
Part numbers : RX1-10-01196 , FT-60 , 10-01196
Unit of Measure: EA

266.77 EUR / EA 266.77 EUR 266.77 € excl. VAT

266.77 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 152 EA ready to ship on Monday 2026-07-27
Order before 17:00 CET on Friday 2026-07-24
Up to 187 EA ready to ship on Thursday 2026-07-30
Order before 17:00 CET on Friday 2026-07-24
122 EA available on request, fees apply
Special order from vendor stock.

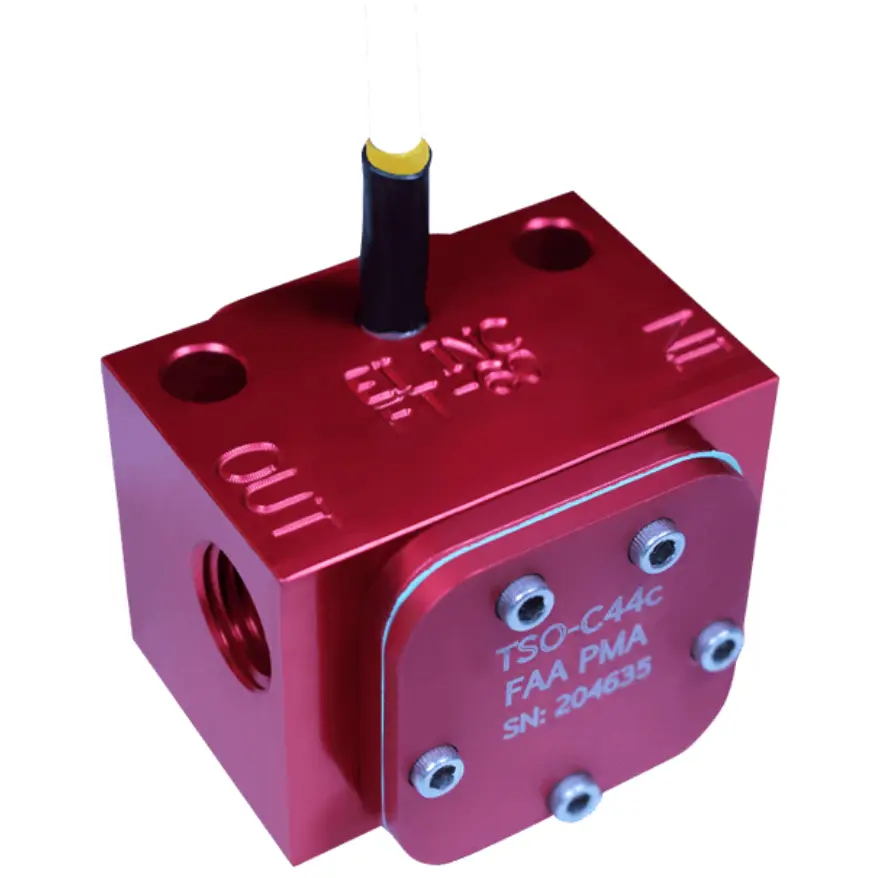

The Electronics International FT-60 fuel flow transducer, also known as the Red Cube, is designed for aircraft fitted with engine-driven fuel pumps and engines rated below 350 HP.

Its compact red-anodised aluminium body incorporates 1/4 in female NPT inlet and outlet ports and provides fuel-flow measurement from 0.6 to more than 70 GPH. The manufacturer specifies a pressure drop of 0.6 psi at 30 GPH and 2.3 psi at 60 GPH.

  • Manufacturer part number: FT-60
  • For engine-driven fuel-pump systems below 350 HP
  • Fuel-flow range: 0.6 to 70+ GPH
  • Connections: 1/4 in female NPT
  • Red-anodised aluminium housing
  • Approximate dimensions: 35 mm high × 41 mm wide × 48 mm long
  • Manufacturer-stated mass: approximately 150 g

Installation must follow the applicable aircraft maintenance data and the manufacturer’s FT-60 flow-transducer data sheet. The manufacturer specifies NPT fittings and thread sealant; straight-thread fittings are not to be used. Verify correct system suitability, fuel pressure and installation configuration before return to service.

Relevant documentation: Electronics International FT-60 Flow Transducer Data Sheet.

Contact Us

Terms and Conditions

Share

Overview

Flow Transducer. For use in Aircraft with engine-driven fuel pumps & Horsepower up to 350 HP.

E.I. products include all documentation and certifications

Specifications

  • Fitting: 1/4" female NPT
  • Flow Rate: .6 to 70+ GPH
  • Pressure Drop: .6 psi at 30 GPH / 2.3 psi at 60 GPH
