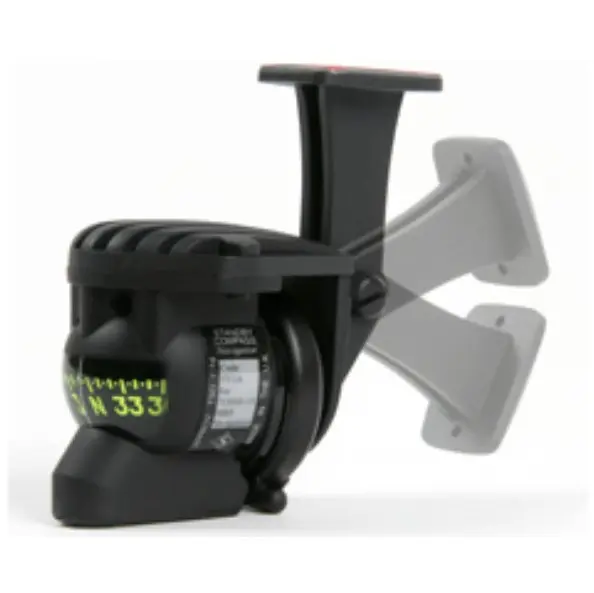

Sirs Navigator N/H Compass Non-Lit NV2A
Part Number(s): 10-00496, NV2A
Unit of Measure Name:
Units
Internal Reference:
RX1-10-00496
Overview
| Note: Lighting on lighted versions is blue/white. The SIRS "Navigator" delivers extremely accurate readings due to its fully integrated, 4 magnet correction facility. A similar design is used on the Concord, and many civil and military aircraft. It has the same features as the "Pegasus", but is mounted with a fully adjustable bracket that allows attachment to a variety of positions including the glare-shield or the windshield. This allows the compass to be located away from magnetic influences. A lightweight and versatile compass designed for use in light aircraft but also used in rugged vehicles for special purpose application. The compass is fully approved to TSO C7d and can be installed in a range of positions due to its unique rotating rear mounting support. Location can be adjusted to obtain the best for view and magnetic location. The "Non-Lighted" version compass card legend is Florescent Yellow and does not have illumination. The "Lighted" version compass card legend is Fluorescent Yellow and does not have illumination. Up to 30° magnetic correction can be achieved for directional errors and alignment accuracy can be optimized by rotating the compass body about its support. Note: The Navigators are dual voltage |
Features
- Compact modern and low weight technology
- Accurate and Simple magnetic correction
- Universal mounting bracket
- Silicone card damping
- Fluorescent Yellow - High visibility card
Specifications
- Construction: Polycarbonate (70%). Aluminum Alloys, Brass, Silicone Fluid (30%).
- Body Color: Black
- Illumination Type / Color / Voltage: Not Lit
- EASA Approval: ETSO C7d
- FAA Approval: TSO C7d
- Magnetic Correction: Up to 30°
- Body Height: 62mm
- Max Width: 57mm
- Weight 133g
- Max Tilt: 20°
- Operating Temp Range: -40 to +85°C
- Qualification Specs: RTCA DO160D
