UMA 3-1/8 Electric Tachometer 0-3500 RPM With MarkinGS Non-TSO

UMA 3-1/8 Electric Tachometer 0-3500 RPM With MarkinGS Non-TSO

https://www.roctexo.com/web/image/product.template/36403/image_1920?unique=8b563f1
Part numbers : RX1-10-00121 , 19-811-112 , 10-00121
Unit of Measure: EA

456.53 EUR / EA 456.53 EUR 456.53 € excl. VAT

456.53 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA available on request, fees apply
Special order from vendor stock.

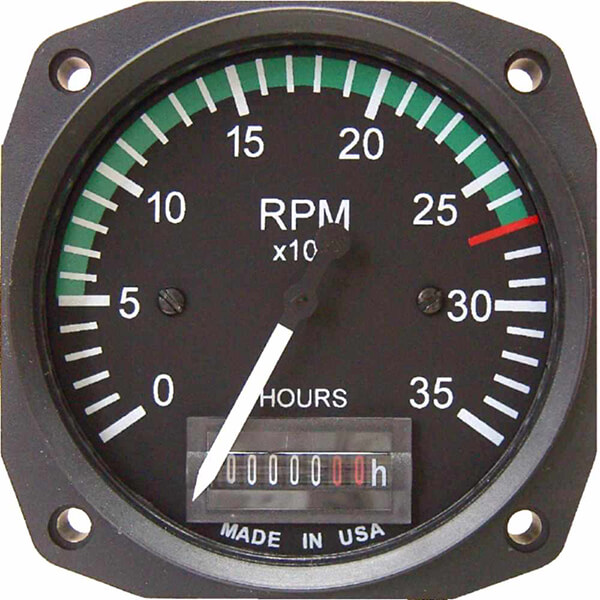

UMA Instruments electronic tachometer, manufacturer part number 19-811-112, in a nominal 79 mm (3-1/8 in) panel-instrument format. This analogue tachometer provides engine-speed indication from 0 to 3500 RPM and is calibrated for a 2-pulse-per-revolution signal.

  • 0–3500 RPM indication range
  • 2 pulses per revolution calibration
  • Dial markings: green arc 500–2700 RPM; redline at 2700 RPM
  • Integrated hourmeter; hour recording begins above 1800 RPM
  • Designed for use with the UMA 1A3-4 tachometer sending unit
  • Non-TSO instrument; not EASA/FAA approved

Please confirm the required signal source, pulse calibration, panel installation dimensions and applicable approval basis before installation. Installation should be carried out in accordance with the manufacturer’s instructions and applicable maintenance data.

Documentation: UMA Electronic Tachometers.

Contact Us

Terms and Conditions

Share

RPM RangeUMA Part No.ApplicationDial MarkingPN
0-350019-811-112LYCOMING/CONTINENTAL MECH. TACH PORTGA 500-2700, RR 270010-00121

Overview

3-1/8" NON-TSO Tachometers With Built-In Hourmeter (Starts @ 1800rpm And Above) Weight: 9.0 Oz. Case:ABS Valox 420 Plastic
