3M 4014 Sound Dmp Pnl 12X 48

3M 4014 Sound Dmp Pnl 12X 48

https://www.roctexo.com/web/image/product.template/13433/image_1920?unique=6d077ba
Part numbers : RX1-09-30212 , 7000050111 , 09-30212
Unit of Measure: EA

137.81 EUR / EA 137.81 EUR 137.81 € excl. VAT

137.81 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 5 EA ready to ship on Monday 2026-08-31
Order before 17:00 CET Tomorrow
Up to 81 EA ready to ship on Thursday 2026-09-03
Order before 17:00 CET Tomorrow
4 EA available on request, fees apply
Special order from vendor stock.

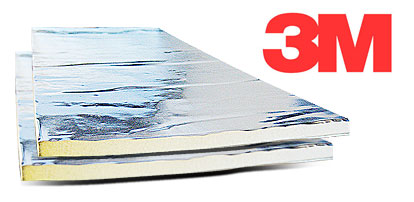

3M™ Damping Aluminum Foam Sheet 4014 is a self-adhesive vibration-damping sheet designed to attenuate resonant vibration and reduce associated noise in thin sheet-metal, plastic panels and support structures.

The 304.8 x 1,219.2 mm sheet combines 6.35 mm open-cell polyurethane foam with an aluminium-urethane constraining layer. Its pressure-sensitive acrylic adhesive is protected by an easy-release liner for straightforward application to a clean, dry surface using hand pressure.

  • Manufacturer: 3M
  • Manufacturer part number: 7000050111
  • Product series: 4014
  • Sheet size: 304.8 x 1,219.2 mm
  • Nominal total thickness: 6.35 mm
  • Construction: open-cell polyurethane foam with aluminium-urethane constraining layer
  • Pressure-sensitive acrylic adhesive with release liner
  • 3M states that the material meets FAR 25.853(b) flammability specifications for acoustical insulation materials.

Suitable where a conformable damping layer is required to help control panel vibration. Selection, surface preparation and installation should follow the applicable 3M technical data sheet and the aircraft or component maintenance data.

Documentation: 3M™ Damping Aluminum Foam Sheet 4014 Technical Data Sheet.
