Pt-100-1 Pneuhyd Blind Riveter

Image for illustration only. It may show a product series rather than the exact product offered.

Pt-100-1 Pneuhyd Blind Riveter

https://www.roctexo.com/web/image/product.template/26484/image_1920?unique=e9ad82f
Part numbers : RX1-09-01070 , PT-100-1 , 09-01070
Unit of Measure: EA

793.25 EUR / EA 793.25 EUR 793.25 € excl. VAT

793.25 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-11-09
Order before 17:00 CET on Friday 2026-11-06

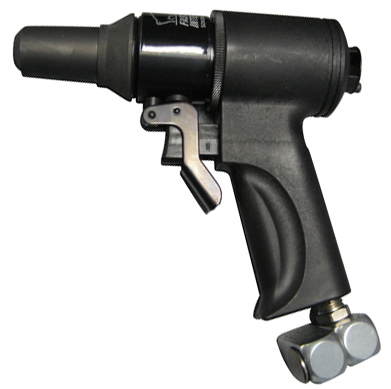

The PT-100-1 is a compact pneumatic-hydraulic blind riveter designed for installing straight-pull blind rivets. Its two-valve hydraulic pump is actuated by a 90–130 psig air supply, while the collect/jaw assembly remains stationary and the outer sleeve-nosepiece assembly moves hydraulically to apply the installation load.

Suitable for maintenance and workshop riveting tasks where a powered blind-rivet installation tool is required, the PT-100-1 is stated to install blind rivets with installation loads up to 3,500 lbf. The supplied information indicates support for blind rivets from 3/32 in diameter through 1/4 in diameter, including CherryMAX rivets within that range.

  • Manufacturer part number: PT-100-1
  • Pneumatic-hydraulic operation
  • Air pressure requirement: 90–130 psig
  • Stated installation load: up to 3,500 lbf
  • Supplied with nosepieces for 3/32 in, 1/8 in, 3/16 in and 1/4 in rivets

Confirm the required rivet type, diameter, installation load and applicable maintenance data before use.
