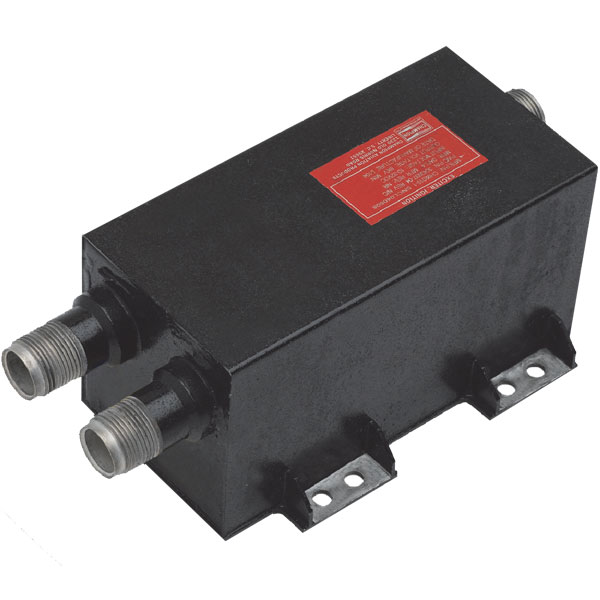

CH92106-4 Champion Exchange Exciter

CH92106-4 Champion Exchange Exciter

https://www.roctexo.com/web/image/product.template/132588/image_1920?unique=d48388a
Part numbers : RX1-08-19063 , CH92106-4 , 08-19063
Unit of Measure: EA

7193.49 EUR / EA 7193.49 EUR 7,193.49 € excl. VAT

7193.49 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Champion Aerospace CH92106-4 is a solid-state ignition exciter for turbine ignition-system applications. It features dual redundant outputs and a constant spark-rate design in a compact enclosure.

  • Manufacturer part number: CH92106-4
  • Dual-output, solid-state ignition exciter
  • Input voltage: 10–30 VDC
  • Minimum output ionisation voltage: 8 kV
  • Constant spark rate: 3 sparks per second
  • Continuous-duty design
  • Environmental operating range: −54 °C to +93 °C; capable of operation to +121 °C
  • Approximate maximum unit mass: 1 kg
  • Approximate dimensions: 206 × 73 × 74 mm

Champion specifies the CH92106-4 with two ARP670 Type 3F outputs and a minimum 70 microsecond unidirectional discharge duration. Refer to the applicable aircraft and engine maintenance documentation, illustrated parts catalogue, and approved data to verify installation suitability before purchase or fitment.

Manufacturer technical data sheet: Champion Aerospace CH92106-4 / CH92106-5 Ignition Exciter
