Norman Lamp 4522

Image for illustration only. It may show a product series rather than the exact product offered.

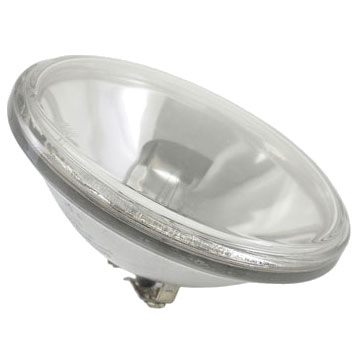

Norman Lamp 4522

https://www.roctexo.com/web/image/product.template/76272/image_1920?unique=3e302af
Part numbers : RX1-08-13132 , 4522 , 08-13132
Unit of Measure: EA

21.25 EUR / EA 21.25 EUR 21.25 € excl. VAT

21.25 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 4 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
35 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Norman Lamps 4522 is a PAR46 sealed-beam aircraft landing lamp designed for 13 V electrical systems. It uses a 250 W shielded C-2 filament and screw terminals.

  • Manufacturer part number: 4522
  • Type: PAR46 sealed-beam lamp
  • Application: aircraft landing light
  • Electrical rating: 13 V, 250 W
  • Base: screw terminals
  • Filament: shielded C-2
  • Nominal luminous intensity: 290,000 cd
  • Rated life: 25 hours
  • Maximum overall length: 79 mm
  • Maximum bulb diameter: 144 mm
  • Bulb edge width: 10 mm
  • Additional references: NSN 6240-00-155-7920; MS25241-4522

Please verify the required part number, electrical rating and installation configuration against the applicable aircraft maintenance documentation before purchase or fitment.
