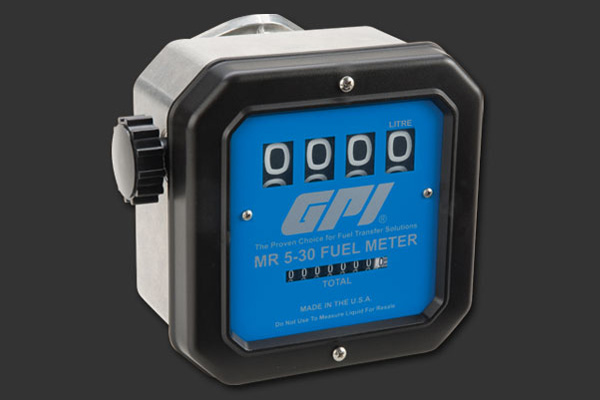

5-30 Gpm Modular Mechanical Fuel Meter M30-L8N

The GPI M30-L8N is a modular mechanical fuel meter for measuring thin-viscosity petroleum fuels in ground-based pump systems. Its nutating-disc design converts fuel flow into a calibrated litre reading, with a resettable batch total and a non-resettable cumulative total.

Manufacturer part number: 165100-02
Model: M30-L8N

• Flow range: 19–114 L/min
• Typical accuracy: ±2%
• Maximum working pressure: 3.4 bar
• 1 in. inlet and outlet connections
• Aluminium housing, cover and fittings
• Field-calibration provision for supported fuels
• Compatible with petrol blends up to E15, diesel blends up to B20 and kerosene, subject to the manufacturer’s instructions

The meter is designed for pump-driven transfer systems and is not intended for gravity-flow systems. It may be installed inline or as part of a compatible modular GPI fuel-transfer arrangement.

Important: This product is for ground-based fuel-transfer use only. It must not be installed on or in an aircraft and must not be used to pump fuel into aircraft.

For installation, operating, calibration and safety instructions, consult the GPI M30 Owner’s Manual.
