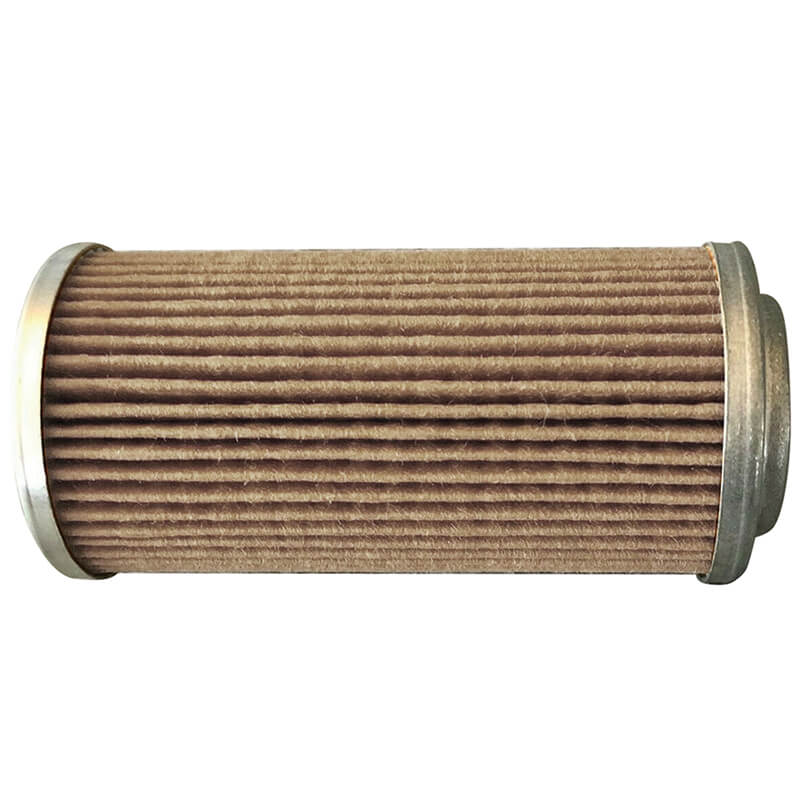

AN6235-1A Purolator Filter

https://www.roctexo.com/web/image/product.template/31316/image_1920?unique=c19fdc6
Part numbers : RX1-08-07076 , AN6235-1A , 08-07076
Unit of Measure: EA

31.92 EUR / EA 31.92 EUR 31.92 € excl. VAT

31.92 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
5 EA available on request, fees apply
Special order from vendor stock.

The AN6235-1A Purolator filter is a line filter element designed for use in specified AN6234 and MS28720 filter assemblies.

  • Part number: AN6235-1A
  • 10 micrometre filtration rating
  • Micropleat element with resin-impregnated cellulose filter media
  • Hydraulic O-ring configuration
  • Minimum element-collapse rating: 150 psid
  • Stated as qualified to MIL-F-5504

Suitable for maintenance replacement where AN6235-1A is the required part number. Verify the applicable assembly, technical data and installation requirements before purchase or installation.

Contact Us

Terms and Conditions

Share

AN No.A (inches)C (inches)D (inches)Part No.
AN6235-1A1.937/1.875.859/.813.375/.37308-07076

Overview

  • MIL-F-5504 QUALIFIED
  • QUALIFIED FOR USE IN MS28720 AND AN6234 FILTER
  • ASSEMBLIES.
  • ELEMENT COLLAPSE:150PSID MINIMUM.
  • FILTRARTION:10 MICROMETERS.
  • HYDRAULIC O-RING.
  • MEDIA: MICROPLEAT(c) ELEMENTS (resin impregnated cellulose)
  • BUBBLE TEST 100%


Specifications-3A

  • P/N AN6235-3A Specifications
  • Body Diameter: 1.625 Inches Nominal
  • Body Inside Diameter: 0.891 Inches Nominal
  • Filtration Rating In Microns: 10.0 Nominal
  • Flow Direction: Inside Out
  • Design Type: Nonreusable
  • Body Overall Length: 3.438 Inches Nominal
  • Filtering Media Design: Pleated Single Filtering Media Response
  • Filtering System For Which Designed: Full Flow
  • Special Features: Used On Grumman Aircraft,model A10;with Unthreaded Mountin Hole,0.2656 In. Dia
  • Material: Paper Filtering Medium
  • Material: Metal Container/cartridge
  • Media For Which Designed: Fuel/oil, Hydrocarbon
  • Style Designator: Cylindrical W/ Container (rigid)
