Stepless Screw Clamp # 070-9

Image for illustration only. It may show a product series rather than the exact product offered.

Stepless Screw Clamp # 070-9

https://www.roctexo.com/web/image/product.template/48189/image_1920?unique=96ec246
Part numbers : RX1-070-9 , 17800132 , 070-9
Unit of Measure: EA

4.52 EUR / EA 4.52 EUR 4.52 € excl. VAT

4.52 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

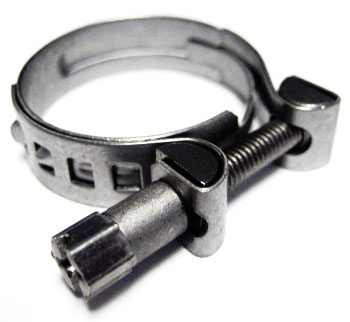

Oetiker StepLess® Screw Clamp PG 178, manufacturer part number 17800132, is a stainless-steel screw clamp with a tongue-in-groove design for continuous 360° compression and a smooth inner band circumference.

  • Clamping range: 59–70 mm
  • Band dimensions: 9.0 mm wide × 0.6 mm thick
  • Band, spacer and retaining elements: stainless steel, material 1.4301 / UNS S30400
  • Screw: stainless steel, material 1.4319 / UNS S30200
  • Adjustable interlock provides multiple nominal-diameter engagement positions before tightening

Suitable for maintenance and assembly work where the required clamp diameter, hose or duct material, and installation torque have been verified against the applicable technical data.

Documentation: Oetiker StepLess® Screw Clamps PG 178 technical data.
