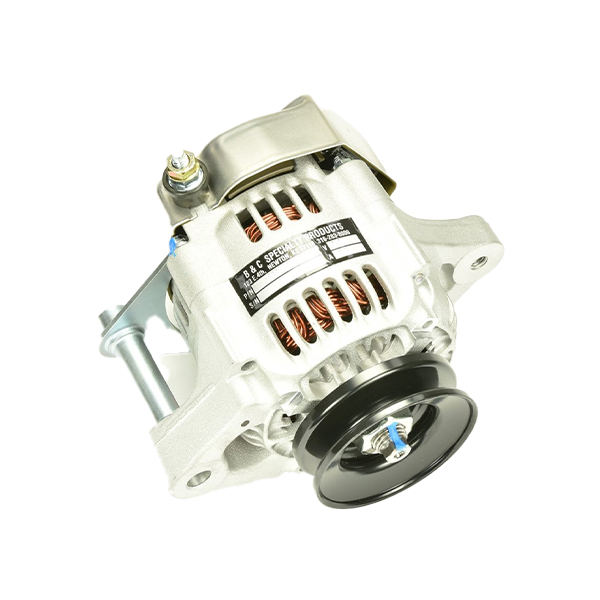

B&C Alternator - 40 Amp - Homebuilt - SF401

The B&C SilverFlite SF401 is a compact 40 A belt-drive alternator intended for experimental and homebuilt aircraft applications. It provides 40 A output at cruise RPM and incorporates integral voltage regulation together with B&C Dynamic Over-Voltage Protection.

Designed to simplify installation, the SF401 uses a two-wire connection arrangement for alternator output and control/enable circuits. It features sealed ball bearings, rotor balance and three integrated mounting attachment points for stable installation.

• Manufacturer part number: SF401
• 40 A output at cruise RPM
• Integral voltage regulation and Dynamic Over-Voltage Protection
• Approximate weight: 2.77 kg
• Supplied with mounting bracket, pre-wired field connector assembly, belt tension arm, high-performance belt and attachment hardware

The supplied product information identifies the SF401 for homebuilt aircraft with 14 V electrical systems and Boss-mount engine cases. Verify suitability, installation configuration and required circuit protection against the applicable aircraft and engine documentation before installation.

For experimental aircraft only; not EASA/FAA approved.
