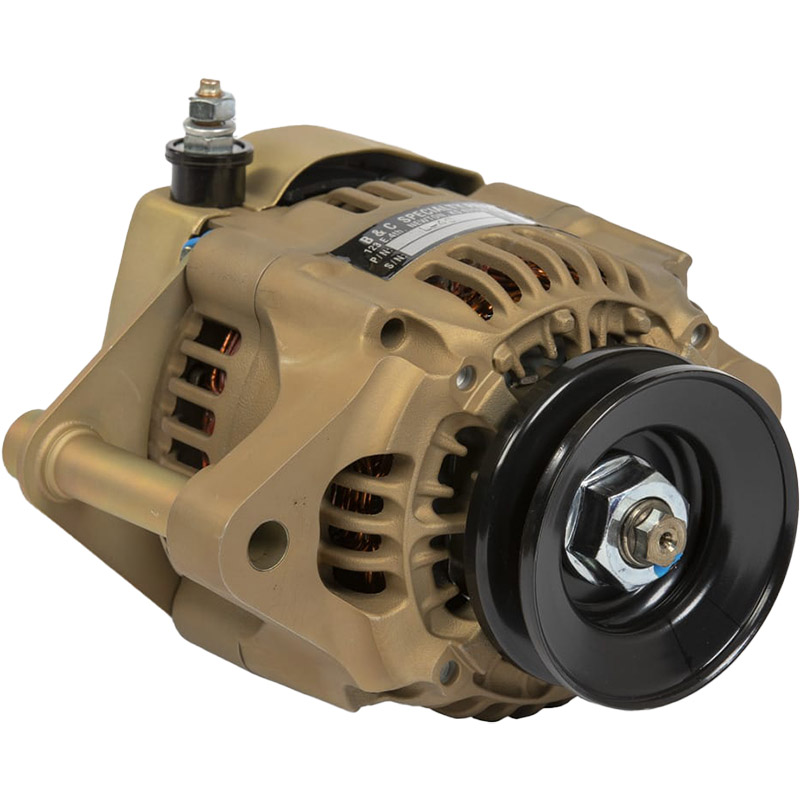

B&C Alternator Special Case Mount Kit For Other Starter L-40 with LS-1B 28V - for Homebuilt

The B&C L-40-SC-LS-1B is a special case-mount L-40 alternator configuration for homebuilt aircraft, supplied for 28 V electrical systems with the B&C LS1B external controller/regulator. The product designation is intended for installations using a starter other than a B&C starter.

The L-40 is a 40 A, belt-driven alternator platform designed by B&C Specialty Products for aircraft electrical systems requiring a lightweight power source. B&C describes the L-40 design as using sealed heavy-duty ball bearings, built-in cooling fans and a dynamically balanced rotor. The alternator is externally regulated; the included LS1B controller/regulator is designed for use with B&C wound-field alternators in 28 V systems and provides adjustable linear voltage regulation, over-voltage protection, and low-voltage monitoring.

• Manufacturer part number: L-40-SC-LS-1B
• L-40 alternator platform: 40 A
• Electrical system configuration: 28 V
• Controller/regulator: B&C LS1B
• Mounting configuration: special case mount for other-starter installation
• Application category: homebuilt / Experimental aircraft only
• Approval status: not EASA/FAA approved

Relevant manufacturer documentation includes L-40 case-mount installation instructions, L-40 instructions for continued airworthiness, outline drawing, and LS1B technical manual. Confirm the suitability of the mounting arrangement, belt, electrical system architecture and installation requirements against current B&C documentation before installation.
