Image for illustration only. It may show a product series rather than the exact product offered.

Reducer From 3Ati To 2 1/4 Ins

Part numbers : RX1-07-01330 , FAP04-4 , ASS-07-01330 , 07-01330

Unit of Measure: EA

This combination does not exist.

Up to 4 EA ready to ship on Thursday 2026-10-15

Order before 16:00 CET on Tuesday 2026-10-13

9 EA available on request, inbound freight fee of 60 EUR applies

Special order from vendor stock.

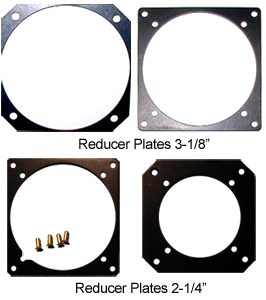

Reducer plate assembly for adapting a 3ATI instrument-panel cut-out to accept a 2¼ in (57.2 mm) diameter instrument.

Manufacturer part number: FAP04-4

Two-piece reducer arrangement designed to mount behind and within the existing 3ATI cut-out.
Heat-treated aluminium construction with black anodised finish.
Approx. 2.0 mm material thickness.
Top plate features 45° corners; the plate assembly may be shimmed to suit instrument-panel thickness.
Supplied with four rivets.

Suitable for panel-instrument installation and refurbishment work where a 3ATI opening requires reduction to a 2¼ in instrument mounting diameter.
