Matco 5 Wheel & Brake # W51L

Matco 5 Wheel & Brake # W51L

https://www.roctexo.com/web/image/product.template/68394/image_1920?unique=a1e1dd3
Part numbers : RX1-06-01710 , WHLW51L , 06-01710
Unit of Measure: PAIR

827.73 EUR / PAIR 827.73 EUR 827.73 € excl. VAT

827.73 EUR / PAIR excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

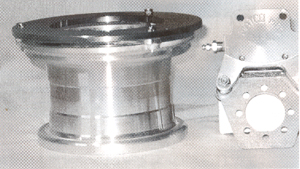

Matco W51L centrifugally cast wheel and external-caliper brake assembly, supplied as a pair. Manufacturer part number: WHLW51L.

This 5-inch wheel and brake configuration is specified for use with a 5.00-5 tyre and uses 1.25-inch taper/roller bearings. The supplied product information states a static capacity of 1,420 lb per wheel and a load limit of 4,260 lb.

  • Wheel diameter: 127 mm
  • Wheel width: approximately 117 mm
  • External caliper spacing: approximately 31 mm
  • Bearing spacing: approximately 78 mm
  • Axle spacing: approximately 33 mm
  • Bearing axle diameter: approximately 32 mm
  • Stated brake torque rating at 450 psi: 1,988 in-lb

Confirm the required wheel, bearing, axle and brake configuration against the applicable aircraft maintenance data before installation.
