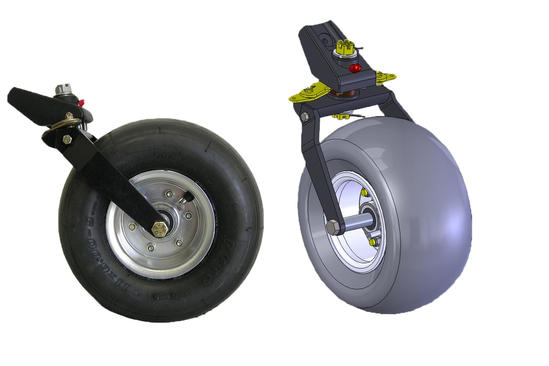

Matco Pneu Tailwheel Whlt-11D

The Matco WHLT-11D is a dual-arm pneumatic tailwheel assembly designed with a steerable, full-swivelling configuration. Its geometric-release mechanism permits the wheel to caster after the steering angle reaches 40 degrees.

The assembly uses an 11-inch (approximately 28 cm) pneumatic tubeless tyre on split rims, supporting easier tyre mounting and removal. The wheel incorporates a 15.9 mm precision sealed ball bearing, while oil-impregnated brass bushings are intended to eliminate routine lubrication of the tailwheel bushings.

• Manufacturer part number: WHLT-11D
• Dual-fork tailwheel configuration
• 11-inch pneumatic tubeless tyre assembly
• Steerable and full-swivelling operation with geometric release
• Split-rim wheel construction
• Heat-treated 4130 steel fork arms and wings
• Cast, black-anodised base and forks; die-cast aluminium wheel halves
• Accommodates 31.8 mm or 38.1 mm wide springs; a spacer is required when using a 38.1 mm spring
• Approximate overall dimensions: 34 cm long, 18 cm maximum width and 36 cm high
• Approximate assembly weight: 4.4 kg

Please verify part-number suitability, installation arrangement and applicable airworthiness requirements before purchase or installation.
