Airforms Baffle Assembly RH Rear Bare Black Seal AF0555236-1-BRBK

Airforms Baffle Assembly RH Rear Bare Black Seal AF0555236-1-BRBK

https://www.roctexo.com/web/image/product.template/286428/image_1920?unique=58e91b3
Part numbers : RX1-05-31841 , AF0555236-1-BRBK , 05-31841
Unit of Measure: EA

353.42 EUR / EA 353.42 EUR 353.42 € excl. VAT

353.42 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA available on request, fees apply
Special order from vendor stock.

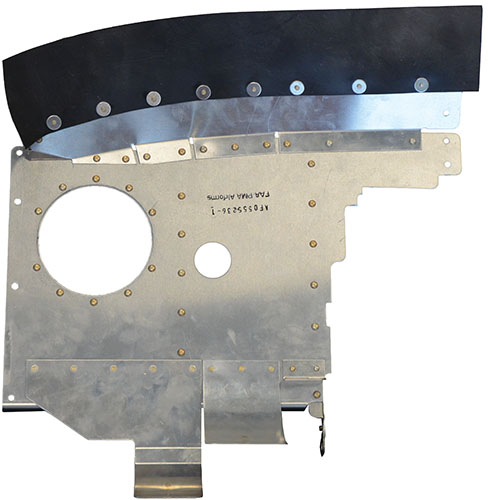

The Airforms AF0555236-1-BRBK is a right-hand rear engine baffle assembly supplied in bare aluminium with black standard seals pre-installed. It is intended as a replacement baffle component where the applicable maintenance data specifies this exact part number.

  • Manufacturer: Airforms
  • Manufacturer part number: AF0555236-1-BRBK
  • Configuration: RH rear baffle assembly
  • Finish: bare aluminium
  • Seal configuration: black standard seals, pre-installed
  • Construction: 6061-T6 aluminium with high-temperature fibreglass-reinforced silicone seals
  • Assembly features: hard-rivet construction; stainless-steel brackets where required; seal-retaining back plates
  • Approval status stated by manufacturer: FAA-PMA
  • Approximate dimensions: 460 × 460 × 150 mm
  • Weight: 1.36 kg
  • Unit of measure: each

Please verify part-number applicability, configuration, and approval acceptance against the aircraft maintenance documentation before installation.
