Scat-8 Ducting 2"

Scat-8 Ducting 2"

https://www.roctexo.com/web/image/product.template/6906/image_1920?unique=998ce5b
Part numbers : RX1-05-29908 , 510010000051 , 05-29908
Unit of Measure: FT

39.46 EUR / FT 39.46 EUR 39.46 € excl. VAT

39.46 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
3 FT ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 1,016 FT ready to ship on Monday 2026-08-10
Order before 15:30 CET Tomorrow
Up to 2,866 FT ready to ship on Thursday 2026-08-13
Order before 15:30 CET Tomorrow
2,108 FT available on request, fees apply
Special order from vendor stock.

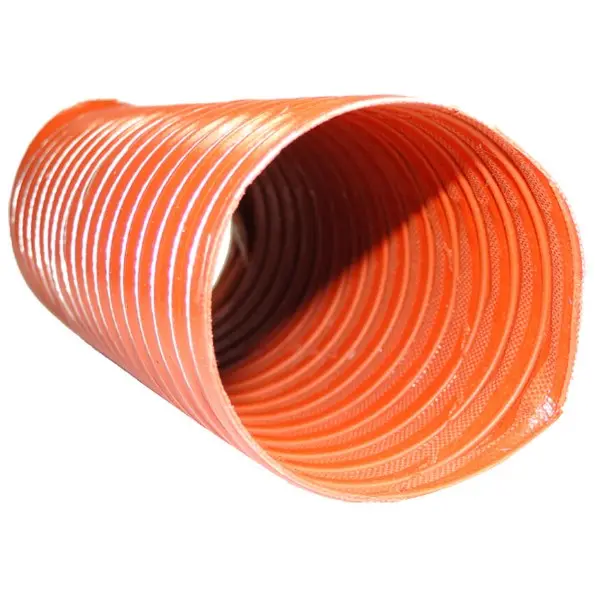

SCAT-8 flexible ducting with a nominal 51 mm (2 in) diameter, supplied by the foot for installation-specific cutting and routing.

Identified as Vena® HT high-temperature flexible ducting, it uses a red silicone-coated fibreglass construction with a visible steel-wire spiral reinforcement. The flexible, corrugated design is intended for routing air or gaseous-fluid ducting where heat resistance and installation flexibility are required.

  • Nominal diameter: 51 mm (2 in)
  • Operating temperature range: -55 °C to +260 °C
  • Short-duration temperature exposure: up to +300 °C
  • Construction: single fibreglass reinforcement layer with high-temperature silicone coating and internal visible steel-wire spiral
  • Unit of measure: foot
  • Manufacturer part number: 510010000051

Suitable for maintenance and fabrication tasks requiring flexible high-temperature air ducting. Confirm the required diameter, routing, installation method, and applicable technical requirements before use.

Documentation: Venair Vena® HT/HTD technical datasheet.

Contact Us

Terms and Conditions

Share

DescriptionIDPNDash No.
Ducting Vena HT205-29908-8


Overview

Sold by the foot.

The flexible hose Vena® HT has excellent flexibility and excellent aging resistance.

Applications


These kind of flexible hoses are specially recommended in gas conductions at high temperatures, engine exhaust fume extraction from a point immediately close to the ejection area, electronic units cooling and welding gas aspiration.
  • Hot air extraction in ceramic kilns.
  • Airplane or helicopter cockpit heating.
  • Ventilation and air-conditioning in boats.
  • Protection of electric cables passing through extremely hot areas.
  • Sheathing of pipework transporting hot air.

Construction


This product is manufactured with one fiber glass reinforcement with high temperature resistance silicone rubber. The inner part is coated with visible steel wire.

Temperature


Operational temperature range from -55ºC (-67ºF) to +260ºC (+500ºF). It may reach up to 300ºC (+572ºF) during short periods of time.

Certifications

  • The fiber glass covered with silicone rubber doesn’t contain heavy metals or any fireproof substance.
  • The fiber glass covered with silicone rubber in compliance to EU Directive 2002/95/ECC of restriction of the use of certain hazardous substances (RoHS)
  • FAR/CS 25.853 Appendix F, Part I (a)(1)(ii)&(iv)"Vertical & Horizontal flammability test"
  • AIRBUS DIRECTIVE ABD0031 and AITM 2.0007 B "Optical density test"
  • AIRBUS DIRECTIVE ABD0031 and AITM 3.0005 "Smoke and toxicity test"

Available Sizes


Stock diameter listed in ordering grid. Diameters not listed are available as a special order in full lengths only. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 13 ft, contact sales to confirm availability.
