Anti-Splat Exhaust Head Shield System 12Lngth 2.25-2.5Dia

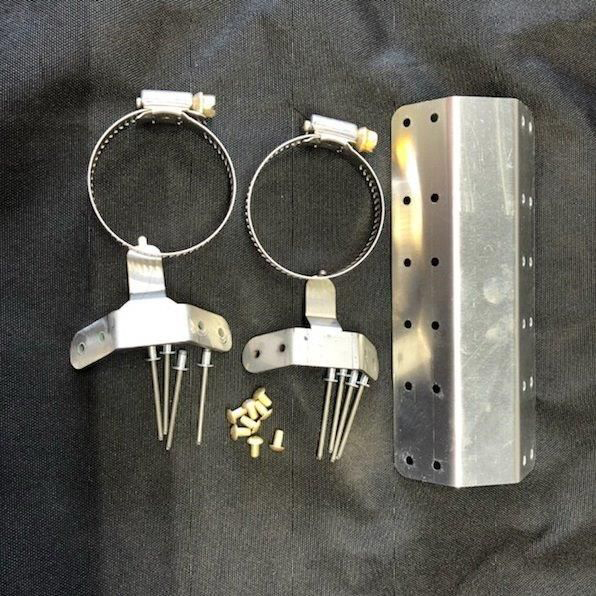

Image for illustration only. It may show a product series rather than the exact product offered.

Anti-Splat Exhaust Head Shield System 12Lngth 2.25-2.5Dia

https://www.roctexo.com/web/image/product.template/95120/image_1920?unique=65f53d2
Part numbers : RX1-05-21814 , 12LNGTH 2.25-2.5DIA , 05-21814
Unit of Measure: EA

52.47 EUR / EA 52.47 EUR 52.47 € excl. VAT

52.47 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Anti-Splat Aero Exhaust Heat Shield System is a 12 in (approx. 305 mm) heat-shield configuration intended for exhaust tubing with a nominal diameter of 2.25–2.5 in (approx. 57–64 mm). It is designed to help control radiated exhaust heat within the engine compartment and protect nearby cowling, hoses and accessories from excessive heat exposure.

The aluminium shield is pre-punched at approximately 25 mm intervals to support trimming and fitting for the installation. Stainless-steel attachment brackets position the shield approximately 6 mm away from the protected hot surface, using hose clamps sized for the specified tubing range.

  • Manufacturer part number: 12LNGTH 2.25-2.5DIA
  • Shield length: 12 in (approx. 305 mm)
  • Exhaust tubing range: 2.25–2.5 in (approx. 57–64 mm)
  • Shield material: 6061-T6 aluminium, approx. 0.8 mm thick
  • Attachment brackets: 301 stainless steel
  • Pre-punched shield holes support custom trimming and attachment

Please confirm available clearance, exhaust tube diameter and installation requirements against the applicable aircraft maintenance data before fitting.
