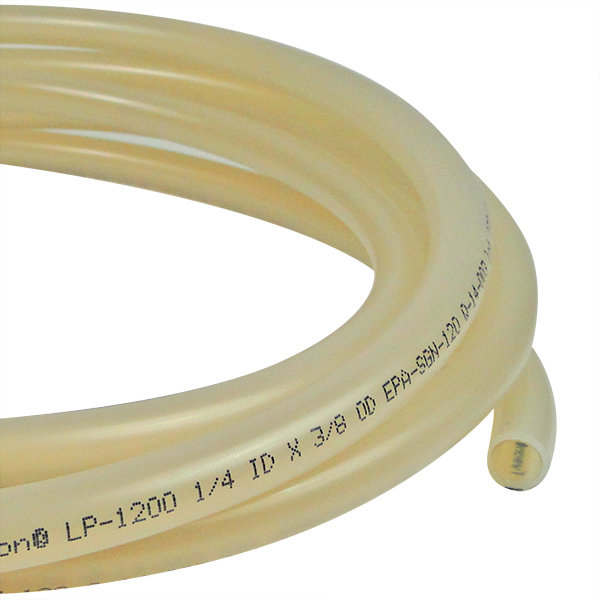

Tygon Lp-1200 Tubing 1/4 X 3/8 Fuel Line
Part Number(s): 05-15262, 570.179078
Unit of Measure Name:
ft
Internal Reference:
RX1-05-15262
| I.D. (in.) | O.D. (in.) | Wall Thickness. (in.) | Max. Working Pressure* (PSI) | PN |
|---|---|---|---|---|
| 1/4 | 3/8 | 1/16 | 30 | 05-15262 |
Overview
| Color: Opaque Clear This high-performance fuel tubing is intended for use with small engines. Tygon® LP-1200 Low Permeation Fuel Tubing is specially designed to meet new EPA and CARB evaporative emission standards of 15g/m2/day. The patent-pending design and robust multi-layer construction offers superior fitting retention and resistance to swelling, hardening and cracking caused by hydrocarbon-based fluids |
Features
- Transparent - Easy to diagnose fuel flow or leak problems
- High purity fluoropolymer inner liner - Reduces the risk of fuel system fouling from extractable solids found in typical rubber products
- Superior fuel resistance and compatible with ethanol-enhanced fuels - Worry-free operation
- Excellent fitting retention - 100% seal for optimum safety
- Superior flexibility - Easy assembly, routing and optimized fuel pick-up
- Excellent elasticity - Prevents “necking” from over-stretching during installation
- UV resistant: Meets ANSI B175.1 Annex D Standard UV testing
- EPA and CARB approved
