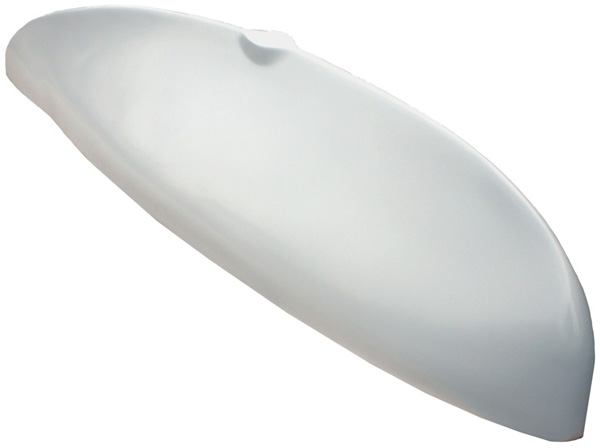

K2U Piper PA-28 / PA-34 Wing Tip Right 6 Inch Nav Pad

Image for illustration only. It may show a product series rather than the exact product offered.

K2U Piper PA-28 / PA-34 Wing Tip Right 6 Inch Nav Pad

https://www.roctexo.com/web/image/product.template/1359/image_1920?unique=b1f87fd
Part numbers : RX1-05-14972 , GF78022-03 , 05-14972
Unit of Measure: EA

853.27 EUR / EA 853.27 EUR 853.27 € excl. VAT

853.27 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

K2U right-hand fiberglass wing tip with a 152 mm navigation-light pad, manufacturer part number GF78022-03. The part is supplied in white primer, ready for painting.

The FAA-PMA documentation identifies GF78022-03 as a replacement wing tip for Piper part number 78022-01.

  • Position: Right-hand wing tip
  • Navigation-light pad: 152 mm (6 inch)
  • Material: Fiberglass laminate
  • Finish: White primer, ready for paint
  • Approval basis: FAA-PMA
  • Documented aircraft eligibility: Piper PA-28-140, PA-28-150, PA-28-160, PA-28-180 from S/N 28-7305001; PA-28R-180 and PA-28R-200 from S/N 28R-7335001; PA-34-200, PA-34-200T and PA-34-220T.

Confirm aircraft serial-number applicability, installed configuration, and local airworthiness acceptance before installation.
