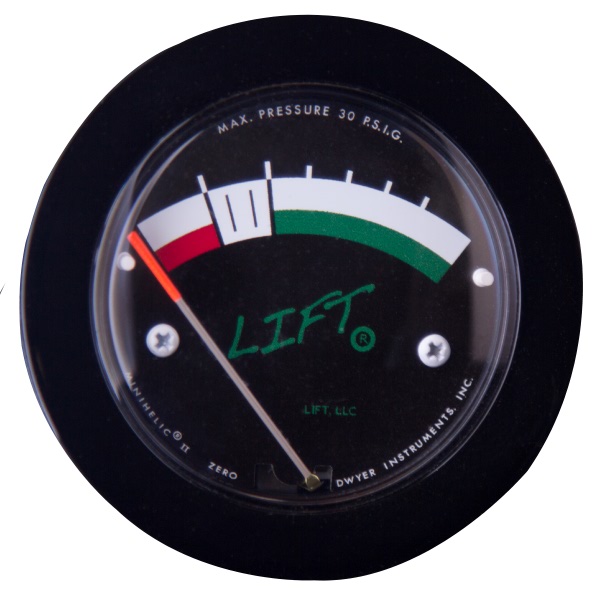

Lift Monitor System With Glare Shield Mount Kit

The LIFT Monitor System with Glare Shield Mount Kit is a supplementary cockpit instrument system intended to provide a relative indication of lift available during flight. The glare-shield mounting arrangement positions the indicator within the normal instrument scan while helping keep the primary flight instruments unobstructed.

According to Lift Management documentation, the system uses differential air-pressure sensing through a wing-mounted probe to indicate relative lift rather than an absolute angle-of-attack value. Calibration is completed on the individual aircraft after installation.

• Glare-shield mounting arrangement
• Relative lift-awareness indication
• Wing-probe differential-pressure sensing concept
• Aircraft-specific in-flight calibration required after installation

Important: This is a non-certified supplementary situational-awareness system. It is not a primary flight instrument and must not replace an approved stall-warning system. Installation suitability, regulatory compliance, and continued airworthiness must be determined for the individual aircraft by appropriately qualified personnel.

Roctexo part number: RX1-05-14966

Documentation: Lift Management LIFT Indicator Installation and Operating Instructions
