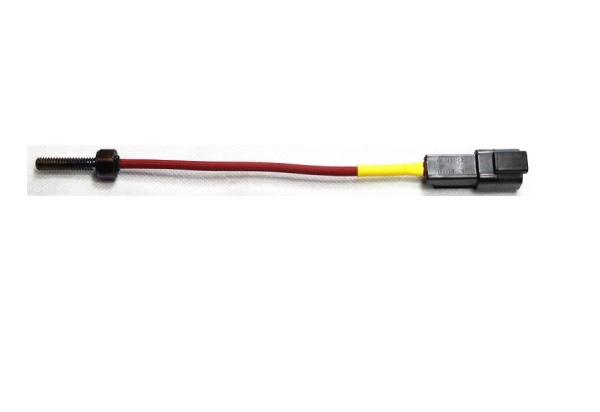

Tanis Threaded Heat Element - 3/8-24 CHT (TaS100) - 50 Watt - 115 Volt TT02628-115/50

Tanis threaded CHT-well heat element, manufacturer part number TT02628-115/50, also identified as TAS100. This legacy 2628-series element is rated at 115 V and 50 W and features a pin connector.

Designed for installation in a bayonet-style CHT thermocouple well. The element has a 3/8-24 UNF-2A threaded section and is intended for use in thermocouple wells only.

• Manufacturer: Tanis
• Part number: TT02628-115/50
• Alternate identifier: TAS100
• Electrical rating: 115 V, 50 W
• Material: brass
• Thread: 3/8-24 UNF-2A
• Threaded length: approximately 11 mm
• Shank length: approximately 33 mm
• Overall bolt-body length: approximately 44 mm
• Hex head: 13 mm
• Lead length: approximately 152 mm
• Connector type: pin

Important: Tanis lists the 2628-series element as discontinued and identifies TA2771-1 as the replacement. A harness connector conversion may be required. Confirm the required part configuration and installation requirements against the applicable Tanis instructions before fitment.

Relevant documentation: Tanis TN02628, CHT Well Element Installation Instructions (TAS100); Tanis TN02594, Connector Conversion Instructions.
