Sphere Steel Grommet .500

Image for illustration only. It may show a product series rather than the exact product offered.

Sphere Steel Grommet .500

https://www.roctexo.com/web/image/product.template/98693/image_1920?unique=81f8fa2
Part numbers : RX1-05-12506 , TTP-500S , 05-12506
Unit of Measure: EA

42.37 EUR / EA 42.37 EUR 42.37 € excl. VAT

42.37 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-09-28
Order before 17:00 CET Tomorrow

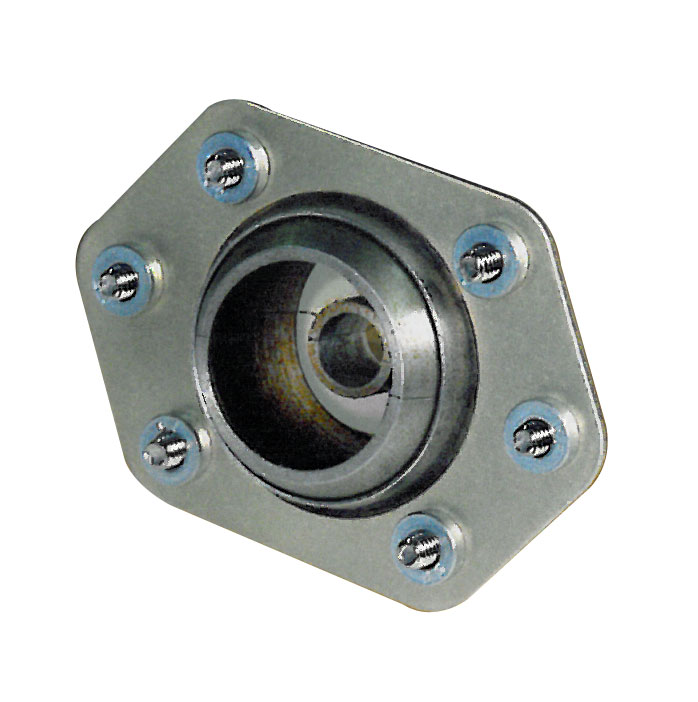

The Sphere Steel Grommet .500 is a steel sphere-style firewall fitting identified by manufacturer part number TTP-500S. It provides a 12.7 mm (.500 in) ball opening for a pass-through installation requiring adjustable routing.

  • 1 in steel ball retained by two stainless-steel pressure plates
  • Up to 50° swivel movement from straight
  • Designed for attachment with six #4 screws
  • .500 in ball opening (12.7 mm)
  • Source product information states compliance with FAR 23.1191 and AC 20-135 requirements

Please verify drawing, installation requirements and suitability for the intended aircraft application before purchase or installation.
