Aerotough Gf Main Land Gr Door Hinge Bushing Set For Bonanza

The Marsh Brothers Aviation AeroTough® GF Main Landing Gear Door Hinge Kit, part number M1000, is a bushing and hardware set for the main landing gear doors of Beech Bonanza aircraft.

The kit uses AeroTough® GF proprietary self-lubricating polymer bushings, designed for grease-free hinge operation. By replacing traditional metallic bushings with non-metallic bushings, the design is intended to avoid bushing-to-sleeve corrosion and the risk of seized hinge bushings associated with difficult-to-lubricate locations.

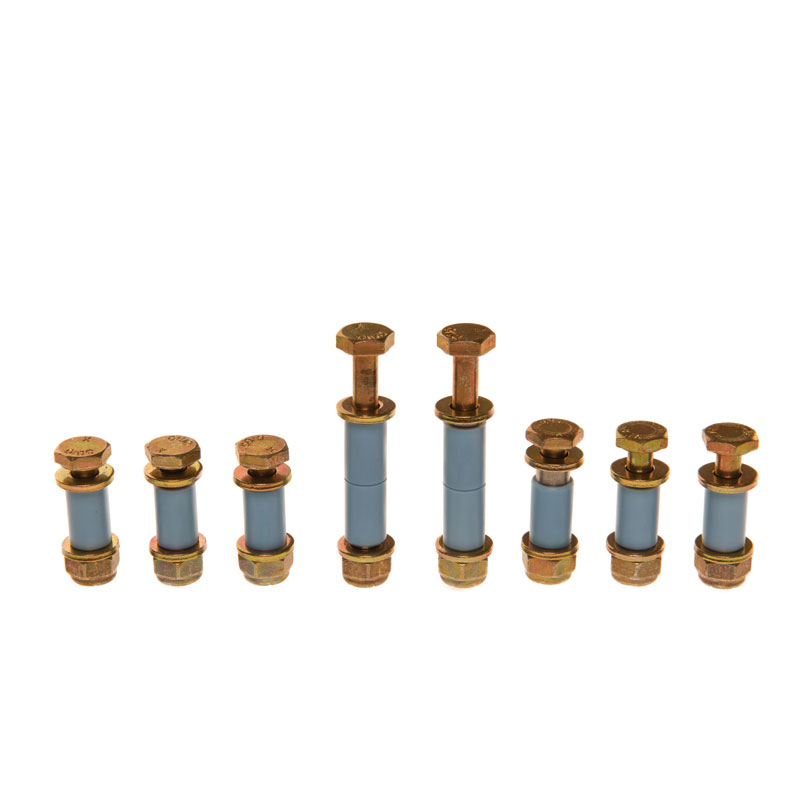

This kit covers two main landing gear doors and includes:

• 10 × AeroTough® GF bushings (MBA10005)
• 6 × short stainless-steel sleeves
• 2 × long stainless-steel sleeves
• Installation hardware, including bolts, washers and nuts

Manufacturer part number: M1000.

A separate M1002 main landing gear door hinge installation kit is described by the manufacturer as recommended, but not essential, for bushing removal and installation. Confirm aircraft eligibility, installation data and applicable regulatory acceptance before installation.

Manufacturer product information and installation documentation should be consulted as part of maintenance planning.
