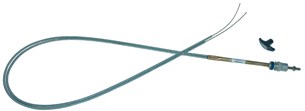

McFarlane Control Turn-To-Lock Dual 8Foot T-Handle Knob MCTL1014D096-T

McFarlane Aviation MCTL1014D096-T is a dual turn-to-lock choke control with a T-handle knob and an approximately 2.4 m conduit length. It is designed by the manufacturer for choke-control installations on dual-carburettor Rotax 912/914-series engines.

A quarter turn of the T-handle locks or unlocks the control at the selected position. The all-metal assembly uses a high-temperature PTFE-lined conduit and dual stainless-steel inner wires for smooth, consistent operation.

• Manufacturer part number: MCTL1014D096-T
• Dual control with T-handle knob
• Approximate conduit length: 2.4 m
• Minimum travel: approximately 89 mm
• Conduit outside diameter: approximately 4.8 mm
• 1/2-20 UNF panel fitting
• Includes two adjustable barrel stops and a hex key
• Inner wires extend beyond the conduit and may be trimmed to suit the installation.

Not EASA/FAA approved for certified aircraft. Not for use as a flight control or flight-control trim-tab control.

Documentation: McFarlane Aviation product details for MCTL1014D096-T.
