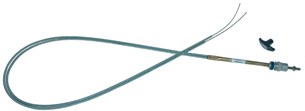

McFarlane Control Turn-To-Lock Dual 4Foot 4-Prong Knob MCTL1014D048-P

McFarlane Aviation MCTL1014D048-P is a dual turn-to-lock control with a 4-prong knob and nominal 1.2 m conduit length. The quarter-turn locking mechanism locks or unlocks the control at the selected position.

This MCTL1014D-series control is described by McFarlane for dual-carburettor Rotax 912/914-series choke-control installations, providing a dual-conduit arrangement without a separate splitter box.

• Manufacturer part number: MCTL1014D048-P
• Dual twisted 1.6 mm, 7x7 stainless-steel wire ends
• All-metal construction with high-temperature PTFE-lined wound conduit
• Minimum travel: 89 mm
• Conduit outside diameter: approximately 4.8 mm
• 1/2-20 UNF panel fitting
• Includes two adjustable barrel stops for attachment to the choke arm
• Wire ends may be trimmed to suit the installation

Important: This control is not EASA/FAA approved for use on certified aircraft. McFarlane states that these controls must not be used for flight controls or flight-control trim tabs. Confirm suitability, installation geometry and required travel against the applicable aircraft and engine documentation before installation.

Manufacturer documentation: McFarlane Aviation product information for MCTL1014D048-P.
