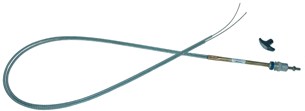

McFarlane Control Turn-To-Lock Dual 4Foot Ball Knob MCTL1014D048-B

The MCTL1014D048-B is a dual turn-to-lock control cable assembly with a ball knob and a nominal 1.2 m conduit length. A quarter turn of the knob locks or unlocks the control at the selected position, supporting a tidy dual-control installation without a separate splitter box.

• All-metal construction with high-temperature Teflon™-lined wound conduit for smooth, consistent operation.
• Dual-control configuration with two adjustable barrel stops for attachment at the controlled arms; no swaging or soldering is required for the supplied stops.
• Nominal minimum travel: 89 mm.
• Conduit outside diameter: approximately 4.8 mm.
• Panel fitting thread: 1/2-20 UNF.
• Pull working load: approximately 11 kg; not designed for push loads.
• Operating temperature: -54 °C to +232 °C; knob and housing assembly: -54 °C to +121 °C.
• Supplied with one 0.05 Allen wrench and two adjustable barrel stops.

Manufacturer part number: MCTL1014D048-B. Unit of measure: each. Listed weight: 0.036 kg.
