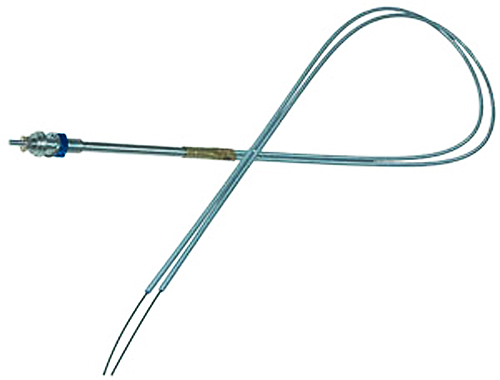

McFarlane Control Dual 12Foot Round Red Knob MCC101D144-RR

The McFarlane MCC101D144-RR is a non-locking dual choke control with a 12 ft (approx. 3.7 m) conduit and a round red anodised aluminium knob. It is designed for dual-carburettor choke installations, including Rotax 912/914 series engine installations where applicable.

The all-metal control features a high-temperature Teflon-lined conduit intended to provide smooth, consistent movement. An internal elastomer seal provides vibration damping and light operating resistance; where the installation incorporates a return spring, the control returns to the closed position when released.

• Manufacturer part number: MCC101D144-RR
• Dual, non-locking control
• Round red anodised aluminium knob
• 12 ft / approx. 3.7 m conduit length, measured from the panel fitting to the end of the conduit
• Minimum travel: 3.5 in / approx. 89 mm
• Teflon-lined conduit, approx. 4.8 mm outside diameter
• 1/16 in, 7 x 7 stainless-steel inner wire
• Includes two adjustable barrel stops for attachment to carburettor choke arms
• Conduit and wire may be trimmed to suit the installation

Important: This control is not EASA/FAA approved for use on certified aircraft and is not intended for flight controls or flight-control trim tabs. Confirm suitability, routing, travel and installation requirements against the applicable aircraft and engine documentation before installation.
