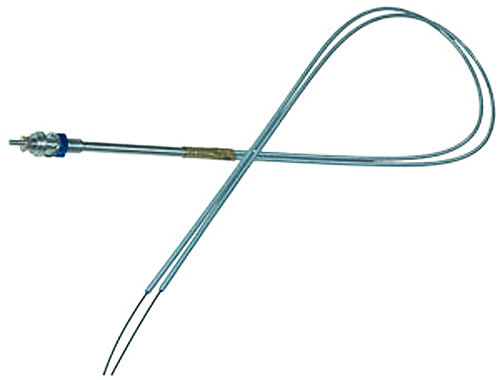

McFarlane Control Dual 12Foot Round Blue Knob MCC101D144-RL

McFarlane Aviation MCC101D144-RL is a non-locking dual choke control with a 3.66 m conduit length and a round blue anodised-aluminium knob. Designed for dual-carburettor Rotax 912/914-series engine choke installations, it provides a tidy dual-control arrangement without a separate splitter box.

• All-metal construction with high-temperature Teflon-lined conduit.
• Internal elastomer seal provides vibration damping and light operating resistance.
• Minimum stroke: 89 mm.
• Conduit outside diameter: approximately 4.8 mm.
• 1.6 mm, 7 x 7 stainless-steel inner wire.
• Two adjustable barrel stops are included for attachment to carburettor choke arms; no swaging or soldering is required.
• Conduit length is measured from the panel fitting to the conduit end; wires extend at least approximately 76 mm beyond the conduit and may be trimmed to length.
• Panel mounting thread: 7/16-20 UNF.

This control does not incorporate a locking mechanism. Where the choke installation uses a return spring, the control will return to the closed position when released.

Important: Not EASA/FAA approved. The manufacturer states that this control is not for use on certified aircraft, flight controls or flight-control trim tabs.

Manufacturer part number: MCC101D144-RL.
