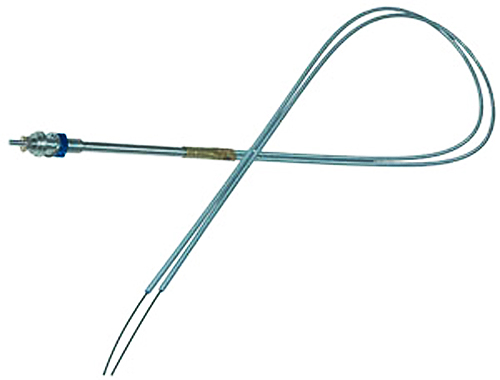

McFarlane Control Choke Dual 8Foot Round Blue Knob MCC101D096-RLC

McFarlane MCC101D096-RLC is a dual, non-locking choke control with a round blue anodised-aluminium knob and a 2.4 m (8 ft) conduit. It is designed for dual-carburettor choke installations, including Rotax 912/914 series engine applications.

The control uses all-metal construction with a high-temperature Teflon-lined conduit to support smooth, consistent operation. An internal elastomer seal provides vibration damping and light operating resistance. Where the choke installation uses a return spring, the control returns to the closed position when released.

• Manufacturer part number: MCC101D096-RLC
• Dual choke control; non-locking configuration
• Round blue knob
• Conduit length: 2.4 m (8 ft), measured from panel fitting to conduit end
• Minimum travel: 89 mm (3.5 in)
• Conduit outside diameter: 4.8 mm
• 1/16 in, 7x7 stainless-steel inner wire
• Includes two adjustable barrel stops for attachment to carburettor choke arms
• Adjustable cable stops allow travel limitation; cable may be trimmed to suit installation requirements
• Approximate maximum pull load: 11 kg; not designed for push loads
• Operating temperature range: approximately -54 °C to +232 °C

Not EASA/FAA approved. Not intended for use on certified aircraft, flight controls, or flight-control trim tabs. Installation and suitability should be confirmed against the applicable engine, aircraft, and maintenance documentation.
