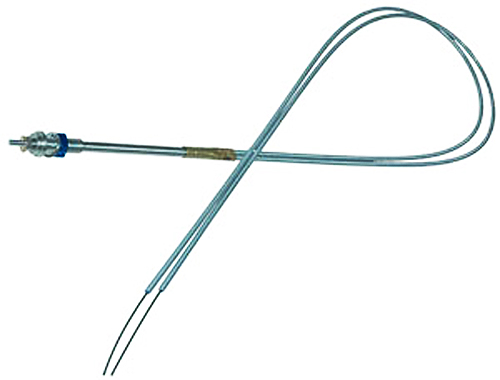

McFarlane Control Choke Dual 4Foot Round Clear Knob MCC101D048-RCC

The McFarlane Aviation MCC101D048-RCC is a non-locking dual choke control with an approximately 1.2 m conduit length and a round clear anodised aluminium knob engraved “Choke”. It is designed by the manufacturer for dual-carburettor Rotax 912/914-series engine choke installations, providing two control outputs without a separate splitter box.

The control incorporates an internal elastomer seal to help damp vibration and provide light operating resistance. Where the installation uses a return spring, the control returns to the closed position when released.

• Manufacturer part number: MCC101D048-RCC
• Non-locking dual choke control
• Approximate conduit length: 1.2 m
• All-metal construction with high-temperature PTFE (Teflon™) lined conduit
• Round clear anodised aluminium knob, engraved “Choke”
• Minimum stroke: approximately 89 mm
• Conduit outside diameter: approximately 4.8 mm
• Inner wire: 1/16 in, 7 × 7 stainless steel
• Approximate maximum pull load: 11 kgf; not designed for push loads
• Operating temperature: approximately −54 °C to +232 °C
• Panel mounting thread: 7/16-20 UNF
• Includes two adjustable barrel stops for attachment to the carburettor choke arms

Important: This control is not EASA/FAA approved. It is not intended for use on certified aircraft, flight controls or flight-control trim tabs. Confirm suitability, installation requirements and applicable airworthiness requirements with appropriately qualified personnel before installation.

Manufacturer documentation: McFarlane Push-Pull Controls and Accessories eligibility guide.
