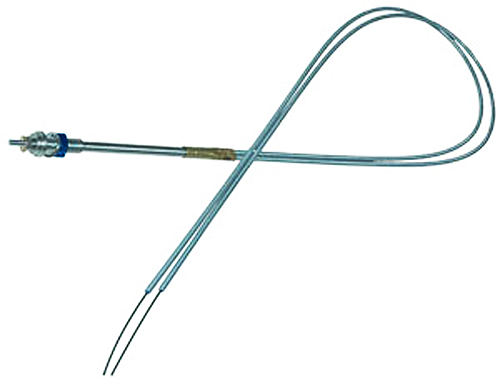

McFarlane Control Dual 4Foot Round Clear Knob MCC101D048-RC

The MCC101D048-RC is a non-locking dual choke control with an approximately 1.2 m conduit and a clear round knob. It is designed to provide a tidy dual-control installation without a separate splitter box.

• Manufacturer part number: MCC101D048-RC
• Dual-control configuration with clear round knob
• Approximately 1.2 m conduit length, measured from the panel fitting to the end of the conduit
• All-metal construction with high-temperature Teflon™-lined conduit
• Minimum travel: approximately 89 mm
• Adjustable cable stops to limit travel; includes two adjustable barrel stops for attachment to carburettor choke arms
• Stainless-steel inner wire; conduit outer diameter approximately 4.8 mm
• Inner wires extend at least approximately 76 mm beyond the conduit and may be trimmed to suit the installation

The control incorporates an internal elastomer seal to damp vibration and provide light operating resistance. It is intended for pull-load operation and is not designed for push loads.

Not EASA/FAA approved. Not for use on certified aircraft, flight controls or flight-control trim tabs. Verify suitability, installation requirements and applicable maintenance data before use.
