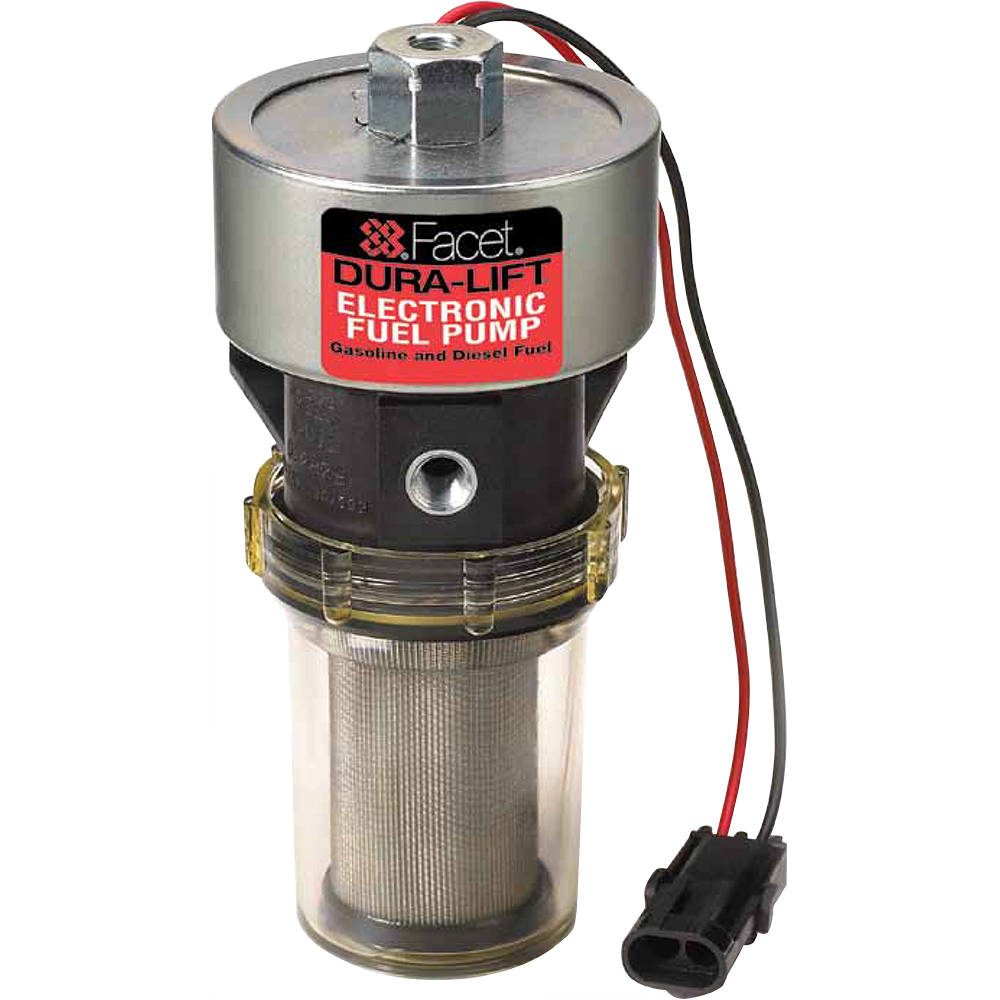

40222 Facet Dura-Lift Pump 12V

The Facet Dura-Lift 40222N is a 12 V solid-state electronic fuel pump for diesel, gasoline, blended alcohol fuels and fuel-additive applications. It is designed as a lift-pump solution for applications such as diesel filtration systems, marine generator sets, refrigeration equipment and industrial fuel systems.

The pump uses sealed electronic operation with no electrical contacts, bearings or diaphragms. Its transparent fuel bowl provides a visual check of the integrated stainless-steel filter, while the two-bolt mounting arrangement supports straightforward installation and service access.

• Manufacturer part number: 40222N
• Facet Dura-Lift 40222 configuration
• 12 V electrical supply
• Flow rate: 33 US gal/h (approximately 125 L/h)
• Pressure range: 9.0–11.5 psi (approximately 0.62–0.79 bar)
• Self-priming lift: up to 3.0 m
• 1/8-27 NPT internal fuel ports
• Internal check valve
• Transparent fuel bowl with stainless-steel filter
• Sealed electronics, reverse-polarity protection and two-bolt mounting

Important: This pump is not EASA/FAA approved. The manufacturer states that Facet/Purolator fuel pumps are not designed, tested or manufactured for aircraft applications.

Relevant documentation: Facet Dura-Lift product catalogue and installation instructions from Motor Components, LLC.
