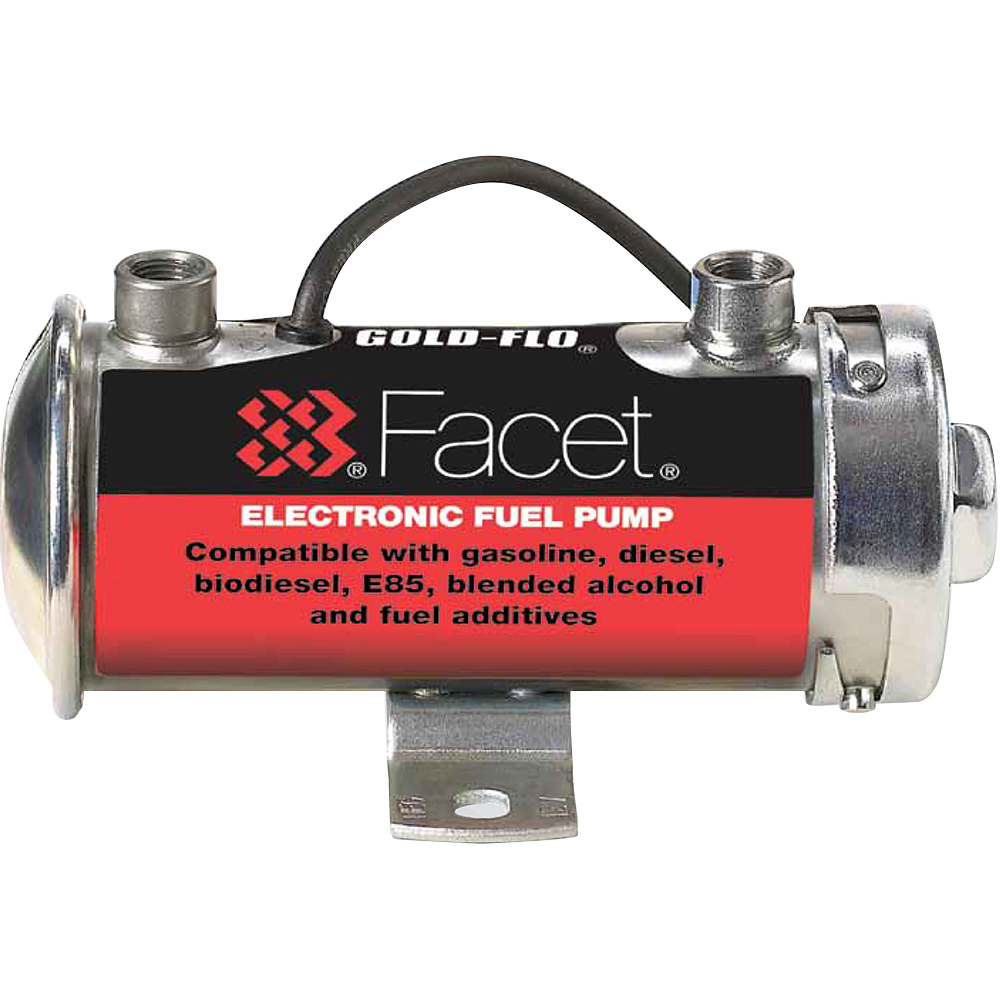

476459 Facet Gold-Flo Fuel Pump

Part numbers : RX1-05-10833 , 476459N , 05-10833

Unit of Measure: EA

142.37 EUR / EA 142.37 EUR 142.37 € Tax Excluded

142.37 EUR / EA Tax Excluded

This combination does not exist.

1 EA ready to ship Tomorrow

Order before 15:30 CET Tomorrow

Up to 3 EA ready to ship on Monday 2026-07-20

Order before 14:30 CET Tomorrow

1 EA available on request, fees apply

Special order from vendor stock.

Add to cart

The Facet Gold-Flo 476459 fuel pump is a 12 V solid-state electric fuel pump designed for fuel-system installations requiring a self-priming, self-regulating pump.

Manufacturer part number: 476459N

Gold-Flo solid-state pump design with sealed electronics
Pressure range: 6.5–8.0 psi
Nominal flow: 32 GPH
1/8-27 internal fitting configuration
Self-priming capability up to approximately 0.6 m vertical dry lift
Replaceable 74-micron filter with integrated magnet for collection of metallic particles
Two-bolt mounting arrangement
Product weight: approximately 0.77 kg

Important: This fuel pump is not EASA/FAA approved and is not intended for aircraft use.

Documents

Wire Size Selection Chart (PDF)

Terms and Conditions

OEM PN	Volts	Part Number
476459E	12	05-10833

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

Fuel Compatibility:
All models of the Facet High Performance Gold-Flo Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability:
The new Gold-Flo Solid State Fuel Pump is an enhanced version of the Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to test data).

Easy to Install-Easy to Service:
Two bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. The only service normally required is a simple cleaning of the filter and fuel inlet cavity.

Eliminates Vapor Lock:
When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Features

12 - 24 inches dry lift
20 - 45 GPH
1 - 8 PSI
Transient Protection - 24 volt only
State of the art Electronics
Sealed Electronics
Built in Anti-Siphon Valve (Positive shut-off)
UL Certified
VCA Certified
Complies to Mil-std-461D
Replaceable 74 micron filter
Built in magnet to collect metal particles for additional filtration
1.6 amp average
Self Priming and Self Regulating
32 ounces and 5 inches
Corrosion Resistant over 100 hours of salt spray
Operating Temperature Range: -40F to 180F

Specifications

PN	OEM PN	Volts	PSI Max-Min	GPH	Fitting Size	Lift Min. Dry	Check Valve	Positive Shut Off Valve
05-10842	40007E	12	5.5-4.0	36	1/4"-18 Int.	24"	N	N
480545	40131E	12	5.5-4.0	34	1/8"-27 Int.	24"	N	Y
476088	476088	24	5.0-4.0	32	1/8"-27 Int.	24"	N	N
480543	480543	12	8.0-6.0	45	1/4"-18 Ext.	24"	N	N
05-10832	476087E	12	5.5-4.0	36	1/8"-27 Int.	24"	N	N
05-10833	476459E	12	8.0-6.5	32	1/8"-27 Int.	24"	N	N
05-10835	477060E	12	4.0-2.75	34	1/8"-27 Int.	24"	N	N
478360	478360E	12	5.5-4.0	36	1/8"-27 Int.	24"	N	N
05-00802	480534E	12	8.0-6.0	45	1/4"-18 Int.	24"	N	N
05-01003	480564E	24	5.0-4.0	32	1/4"-18 Int.	24"	N	Y
