Sphere Metal Grommets Ball Hole .218D/.100L

Image for illustration only. It may show a product series rather than the exact product offered.

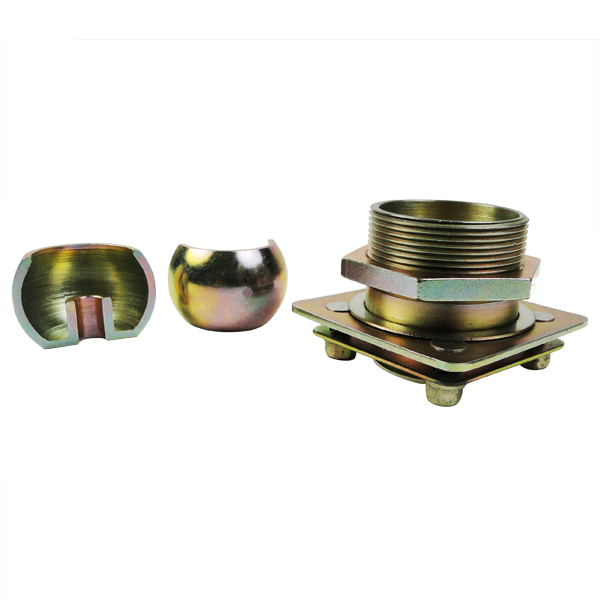

Sphere Metal Grommets Ball Hole .218D/.100L

https://www.roctexo.com/web/image/product.template/71964/image_1920?unique=cfcd804
Part numbers : RX1-05-07137 , 4100-218-100 , 05-07137
Unit of Measure: EA

83.53 EUR / EA 83.53 EUR 83.53 € excl. VAT

83.53 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The 4100-218-100 spherical metal grommet is a 4100-series fitting for composite firewall installations. It incorporates a 1 in steel ball retained by a 4130 steel pressure plate, allowing controlled angular movement of the item passing through the firewall.

  • Ball-hole diameter: 0.218 in (approximately 5.5 mm)
  • Body-length designation: 1.00 in
  • Single-hole firewall installation concept
  • Swivel angle: up to 50° from straight
  • Retained with a steel nut and stainless-steel washer

Suitable for maintenance or build requirements where the specified 4100-series configuration and 0.218 in ball-hole size are required. Verify part-number applicability and installation requirements against the relevant aircraft or system documentation before use.

Roctexo part number: RX1-05-07137
Manufacturer part number: 4100-218-100
