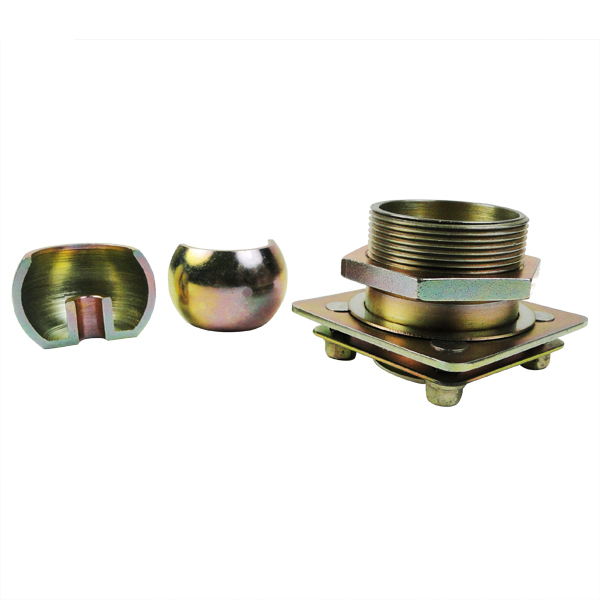

Sphere Metal Grommets Ball Hole .218D/.50L

Image for illustration only. It may show a product series rather than the exact product offered.

Sphere Metal Grommets Ball Hole .218D/.50L

https://www.roctexo.com/web/image/product.template/56506/image_1920?unique=6dc7628
Part numbers : RX1-05-06895 , 4100-218-50 , 05-06895
Unit of Measure: EA

83.53 EUR / EA 83.53 EUR 83.53 € excl. VAT

83.53 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

Spherical metal firewall fitting for composite-firewall installations, configured with a 5.54 mm ball hole and approximately 12.7 mm body reach.

Manufacturer part number: 4100-218-50.

  • 4100-series configuration with a steel ball and 4130 steel pressure plate.
  • Designed to pass through a single firewall hole.
  • Allows swivel movement of up to 50° from the straight position.
  • Listed for use with a 1 5/16 in steel nut and stainless-steel washer.

Please verify the part number, hole size, body reach and installation requirements against the applicable aircraft or installation documentation before purchase and fitment.
