Newton A26S Aero 200 Filler Cap 6 Bolt Flange Non-Locking

Image for illustration only. It may show a product series rather than the exact product offered.

Newton A26S Aero 200 Filler Cap 6 Bolt Flange Non-Locking

https://www.roctexo.com/web/image/product.template/42348/image_1920?unique=182fd28
Part numbers : RX1-05-06836 , A26S , ASS-05-06836 , 05-06836
Unit of Measure: EA

128.04 EUR / EA 128.03858232391207 EUR 128.04 € excl. VAT

128.04 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 3 EA ready to ship on Thursday 2026-10-22
Order before 16:00 CET on Tuesday 2026-10-20

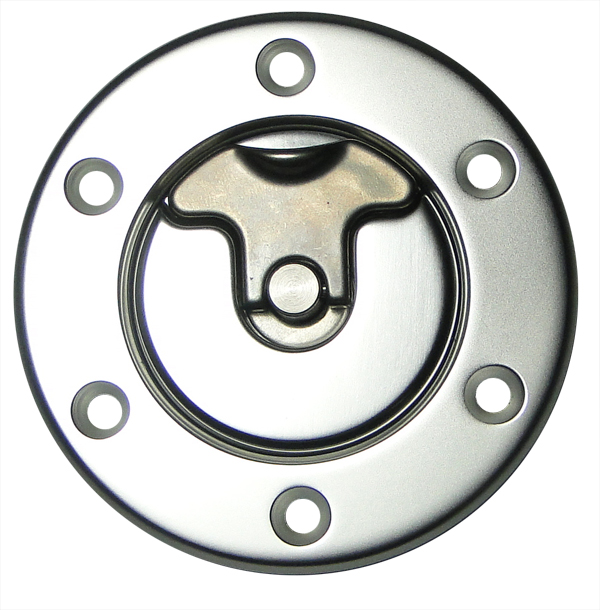

The Newton Aero 200 A26S is a compact, non-locking filler cap with a six-bolt flange for direct installation in a tank. Its all-metal construction combines an aluminium-alloy cap and flange with a clear anodised finish.

Designed for fuel, oil and water tank applications, the Aero 200 uses a Viton A O-ring and acetal saddle. The non-locking configuration is inherent to the compact Aero 200 design.

  • Manufacturer part number: A26S
  • Six-hole fixing arrangement for M5 countersunk bolts
  • Flange outside diameter: 80.0 mm
  • Bolt circle diameter: 63.5 mm
  • Overall depth: 26.5 mm
  • Clear anodised aluminium-alloy construction
  • Supplied with gasket, six M5 × 12 mm stainless-steel screws, washers and Nylock nuts

Please verify the published dimensions, mounting arrangement and suitability for the intended installation before purchase.
